Fast rescue boat davits

These PALFINGER davits have been designed for long time operations under adverse and extreme conditions in a highly corrosive marine environment. The pivot davit is a freestanding deck mounted system consisting of a base frame, davit arm, cylinders, winch, and hydraulic power pack unit. The system enables safe and efficient launch and recovery of a fully manned rescue boat and meets the latest IMO/SOLAS requirements and LSA Code.

Go directly to the technical data:

Product Range

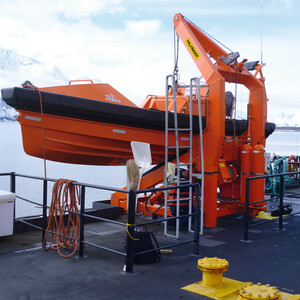

Innovative A-frame davit with hydraulic pivoting and electric hoisting

PRHE series

Delivered as a "plug-and-play" unit, ready for immediate use
Hydraulic pivoting and electric hoisting
Self-contained stainless steel HPU system, all critical components are fully submerged in hydraulic oil
Stainless steel for all shafts, piping and bolts and nuts up to M12
Remote-control push-button box, for hoisting and emergency stop
Foldable davit arm for easy transportation
Optional light weight version and boat fender kits available

Innovative davit systems with all components protected inside the structure

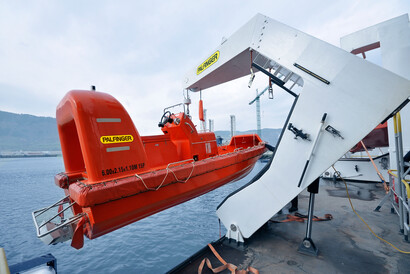

NPDS series

Innovative totally enclosed davit system: all components mounted inside the davit structure and protected from all weather conditions
Fitted with several inspection/maintenance hatches for easy access to all equipment built inside
Delivered as a "plug-and-play" unit, ready for immediate use
Pad-eyes for lifting which makes it beneficial for mounting on board
Standard configuration, or high speed (constant tensioning) configuration available
Optional Ro-Ro certificate

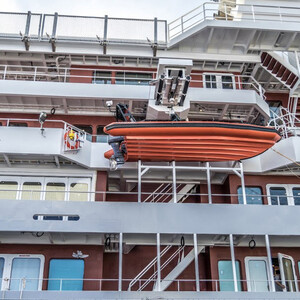

Innovative roof mounted telescopic davits - all components protected inside the structure

NTDS series

Compact roof mounted telescopic davit
Totally enclosed davit system, components protected from all weather conditions
Fitted with several inspection/maintenance hatches for easy access to all equipment built inside
Easy to install / space-saving option
Delivered as a "plug-and-play" unit, ready for immediate use

Options

PRHE/NPDS/NTDS Series

Constant tensioning system*
Shock absorber
Boat supports
Ex-proof*
Heating system
Winterization package

* if applicable

Range

Type	Safe Working Load (SWL)	Max. Boat Weight	Hoisting	Operation
A-Frame (Fast) Rescue Boat Davits
PFHS 15	15 kN	1529 kg	0-18 m/min (Electric)	Electric
PRHE 20	20 kN	2038 kg	0-18 m/min (Electric)	Electric
PRHE 25-2	27.5 kN	2549 kg	0-18 m/min (Electric)	Electric
PRHE 25 H 2	27.5 kN	2549 kg	0-18 m/min (Hydraulic)	Hydraulic
PRHE 35-2	35.3 kN	3600 kg	0-18 m/min (Electric)	Electric
PRH 25 H*	27.5 kN	2804 kg	0-48 m/min (Hydraulic)	Hydraulic
PRH 35 H*	37.5 kN	3823 kg	0-48 m/min (Hydraulic)	Hydraulic
PRH 30/*	30 kN	3059 kg	0-48 m/min (Hydraulic)	Hydraulic
PRH 35 AP*	37.5 kN	3823 kg	0-48 m/min (Hydraulic)	Hydraulic

Single Arm Totally Enclosed Davits
NPDS 3500H / NPDS 3500 HFR/*	31.4 kN	3200 kg		Hydraulic
NPDS 4000 / NPDS 4000 HFR*	39.2 kN	4000 kg	3.5 m	Hydraulic
NPDS 6000*	58.8 kN	6000 kg	4.0 m	Hydraulic

Telescopic Davits
NTDS 1800 H	17.6 kN	1800 kg		Hydraulic
NTDS 3500 H	31.4 kN	3500 kg	3.5 m	Hydraulic

* High speed, optional constant tensioning plus shock absorber

** Ro-Ro fastrescue boat davit

Max boat weight = Fully equipped and manned
