Life raft and rescue boat slewing davits

PALFINGER’s life raft davits are designed for long-term operations under extreme conditions in a highly corrosive marine
environment. The systems enable safe and efficient launching of the largest fully manned davit launchable life rafts. Since the SWL and outreach are usually determined by the size of the life raft, PALFINGER MARINE offers a range of standard designs that are adaptable to some extent in order to meet individual and specific needs.

Go directly to the technical data:

Davit system for liferafts up to 39 persons

SCM-L series

  • Slewing davit for life rafts up to 39 people
  • Plug-and-play system ready for immediate use
  • Easy to operate
  • Easy to install
  • Standardized and proven design
  • Different arm outreaches available
  • Low cost of ownership
  • Quick Return Unit for launching multiple rafts
SCM-L series

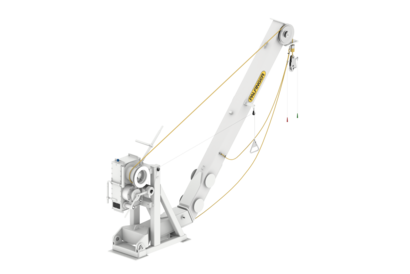

PBR 33

  • Pivoting davit for life rafts up to 39 people
  • Plug-and-play system with compact footprint for limited installation areas
  • Fail safe and easy to operate
  • Easy to install, with relatively low davit weight and low deck forces
  • Standardized and proven design
  • Compact footprint, perfect for limited deck space
  • Low cost of ownership
  • Quick Return Unit for launching multiple rafts
PBR 33
Slewing davit for rescue boats up to 5.25 m (L.O.A.)

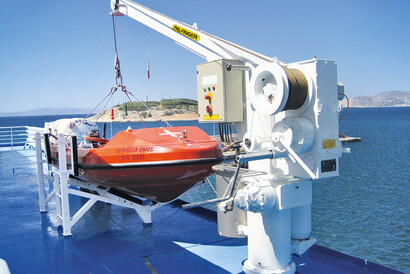

SCH-R series

  • Slewing davit for rescue boats up to 5.25 m (L.O.A.)
  • Multiple safe working load configurations, suitable to handle most of the rescue boat models on the market
  • Standard and proven design
  • Easy to install (plug and play)
  • Provided with self-contained stainless steel HPU
  • Easy accessibility to main components for maintenance and inspection
  • Quick delivery of spare parts (available at multiple locations worldwide)
SCH-R series
Rescue boat slewing davit for rescue boat handling

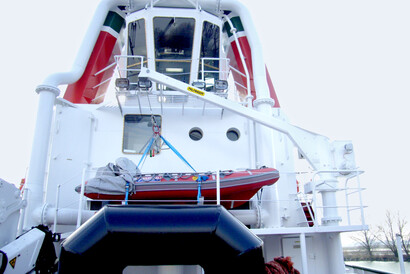

SCM-R series

  • Manual slewing davit for rescue boats handling
  • Suitable to handle rescue boats up to 1,000 kg fully loaded
  • Proven design and competitive price
  • Easy accessibility to main components for maintenance and inspection
  • Easy and time-saving installation
SCM-R series

  • Shock absorber
  • Supports
  • Converter
  • Ex-proof
  • Heating system
  • Other options available on request

Type Safe Working Load (SWL) Max. Boat Weight* Radius Operation
Rescue Boat Slewing
SCM 10-3.5 R 10 kN 1020 kg 3.5 m Manual
SCM 10-5.2 R 10 kN 1020 kg 5.2 m Manual
SCH 17-4.0 R 17 kN 1733 kg 4.0 m Hydraulic
SCH 10-4.0 R 10 kN 1020 kg 4.0 m Hydraulic
SCH 10-5.2 R 10 kN 1020 kg 5.2 m Hydraulic
SCH 12-3.5 R 12 kN 1224 kg 3.5 m Hydraulic
SCH 17-4.0 R 17 kN 1733 kg 4.0 m Hydraulic

Life Raft
SCM 14-3.5 L 15 kN 1529 kg 3.5 m Manual
SCM 21-4.0 L 23 kN 2345 kg 4.0 m Manual
SCM 21-3.5 L 23 kN 2345 kg 3.5 m Manual
SCM 33-4.0 L 36 kN 3670 kg 4.0 m

Manual

Type Safe Working Load (SWL) Max. Boat Weight* Outreach Operation

PBR 33

36 kN

3670 kg

3.75 m

Manual

Type SWL Rescue Boat (SWL) SWL Life Raft Radius Operation
Combi Rescue Boat/ Life Raft Davit
SCH 23/17-4.0 R 17 kN/1733 kg 23 kN/2345 kg 4.0 m Hydraulic

*Fully equipped and manned
