Lifeboat davits

PALFINGER’s lifeboat davits are suitable for any type of lifeboat and rescue boat with a full complement of people and
equipment. These davits can be supplied in modular sections or as one completely assembled unit, depending on the available deck space. Since its SWL and outreach are usually determined by the size of the lifeboat, PALFINGER MARINE offers a range of standard designs that are adaptable to some extent in order to meet individual and specific needs.

Go directly to the technical data:

Product Range

Hydraulic pivoting davit for lifeboats

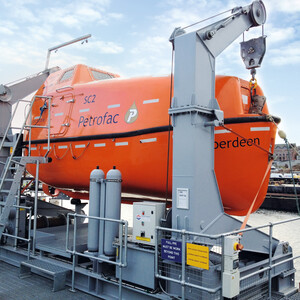

PFH series

Hydraulic pivoting davit provided with self-contained HPU
Ideal for situations where height restrictions apply
Modular built system, easy to install
Foldable davit arms for easy transportation
Main components installed on the davit foundation frames

Totally enclosed davit system with all components protected inside the structure

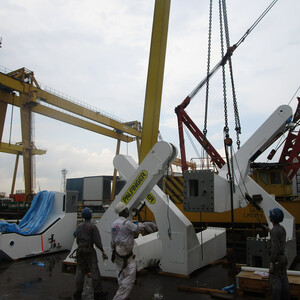

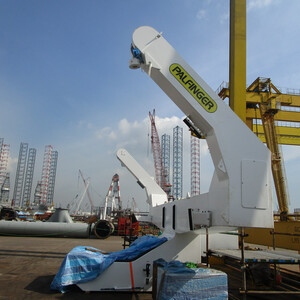

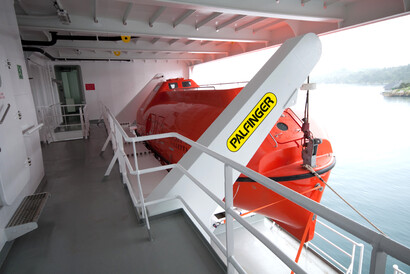

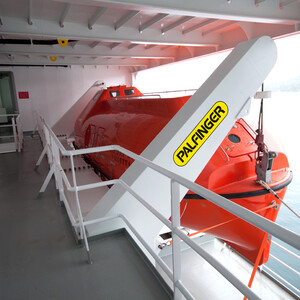

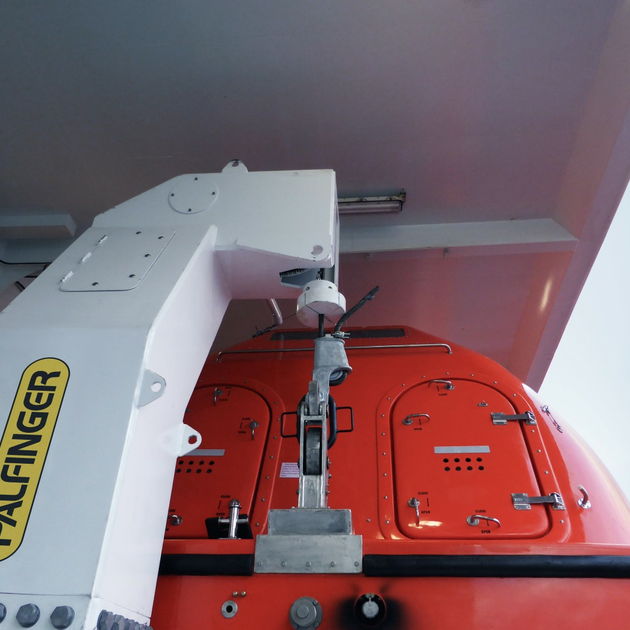

NPD series

Hydraulic pivoting and hydraulic hoisting/lowering
Easy to install (plug and play)
Fitted with several inspection/maintenance hatches for easy access to all equipment built inside
Totally enclosed davit system, components protected from all weather conditions

Innovative roof mounted telescopic davit

NTD series

Telescopic roof mounted totally enclosed davit
Hydraulic hoisting
Easy to install
All components protected from wear and tear

Gravity based davits for our series of totally and partially enclosed lifeboats

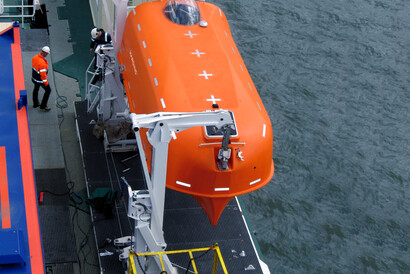

VIP series

Hydraulic brake system
Low cost of ownership
Easy to operate
Complies with latest IMO/SOLAS regulations, LSA Code as well as USCG regulation

Gravity (multi) pivoting davits

NPT lifeboat davit series

Complies with SOLAS regulations
Gravity lowering/electrical hoisting
For life- and/or rescue boat handling

Options

PFH/VIP series

Converter
Life-/rescue execution*
Ex-proof
Skid mounted
Other options available on request

*if applicable

NPD/NTD series

Ex-proof
Heating system
Other options available on request

Range

Type	Safe Working Load (SWL)	Max. Boat Weight*	Operation
Hydraulic Pivoting Lifeboat Davits
PFH 80	80 kN	8158 kg	Hydraulic pivoting/gravity lowering/electric hoisting
PFH 145	145 kN	14785 kg	Hydraulic pivoting/gravity lowering/electric hoisting
PFH 175	175 kN	17845 kg	Hydraulic pivoting/gravity lowering/electric hoisting
PFH 230	230 kN	23453 kg	Hydraulic pivoting/gravity lowering/electric hoisting

Lifeboat Davit
VIP 1000	123 kN	12600 kg	Gravity lowering/electric hoisting

NPT LIFEBOAT DAVIT SERIES
Gravity Pivot Davits
NPT55DL**	58 kN	5914 kg	Gravity lowering/electric hoisting
NPT60DL**	60 kN	6118 kg	Gravity lowering/electric hoisting
NPT85DL**	90 kN	9177 kg	Gravity lowering/electric hoisting
NPT90DL**	90 kN	9177 kg	Gravity lowering/electric hoisting
NPT138DL**	138 kN	14071 kg	Gravity lowering/electric hoisting
NPT170DL	180 kN	18354 kg	Gravity lowering/electric hoisting
NPT205DL	205 kN	20903 kg	Gravity lowering/electric hoisting

Gravity Multi Pivot Davits
NPT65DTL**	68 kN	6933 kg	Gravity lowering/electric hoisting
NPT90DTL**	90 kN	9177 kg	Gravity lowering/electric hoisting
NPT150DTL	150 Kn	15295 kg	Gravity lowering/electric hoisting

Type	Safe Working Load (SWL)	Max. Boat Weight*	Hoisting
Lifeboat Davits
NPD 6000	58.8 kN	6000 kg	0-5/18 m/min
NPD 11300H	110.8 kN	11300 kg	0-5/18 m/min
NPD 14800	145.1 kN	14800 kg	0-5/18 m/min

Telescopic Davits
NTD 12000H	117.7 kN	12000 kg	0 - 5/18 m/min

*Fully equipped and manned

** Also available in life- and rescue version
