Offshore Davits | Gravity

Offshore davits | gravity

Fixed outrigger platform davit for lifeboats

FPG series

  • Fixed outrigger platform davit for lifeboats
  • Solid and proven design
  • Easy to operate
  • For life- and/or rescue boat handling

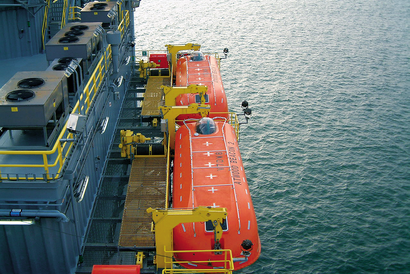

Specially designed for installation use on offshore platforms

FAD 1000

  • Independent integrated hydraulic system
  • Gravity lowering/electrical hoisting
  • Light weight, with adjustable hook distance
  • Easy to install and maintain
PALFINGER Neptune offshore lifeboat davits also available in life-/rescue version

NPT offshore lifeboat davit series

  • Gravity lowering/electrical hoisting
  • Available in life-/rescue version
  • Easy to operate

  • Ex-proof
  • Heating system
  • Other options available on request

Type Safe Working Load (SWL) Max. Boat Weight* Operation/Hoisting
FPG 85-2 85 kN  8667 kg  Gravity lowering/electric hoisting
FPG 120 120 kN 12236 kg Gravity lowering/electric hoisting
FPG 145 145 kN 14785 kg Gravity lowering/electric hoisting
FPG 180 180 kN 18354 kg Gravity lowering/electric hoisting
FPG 230 230 kN 23453 kg Gravity lowering/electric hoisting
FAD 1000.1 128 kN 13052 kg Gravity lowering/electric hoisting

NPT OFFSHORE LIFEBOAT DAVIT SERIES
NPT138DP** 145 kN 14785 kg Gravity lowering/electric hoisting
NPT185DP 185 kN 18864 kg Gravity lowering/electric hoisting
NPT205DP 205 kN 20903 kg Gravity lowering/electric hoisting

*Fully equipped and manned

** Also available in life- and rescue version
