PALFINGER offers any kind of fixed fender profiles and fender systems. Most fixed fender products are made of SBR Natural material, either extruded or molded, but there are also options with composite, polyurethane (PU) and foam. Within the system fender range we can deliver cone fenders, cell fenders and element fenders.

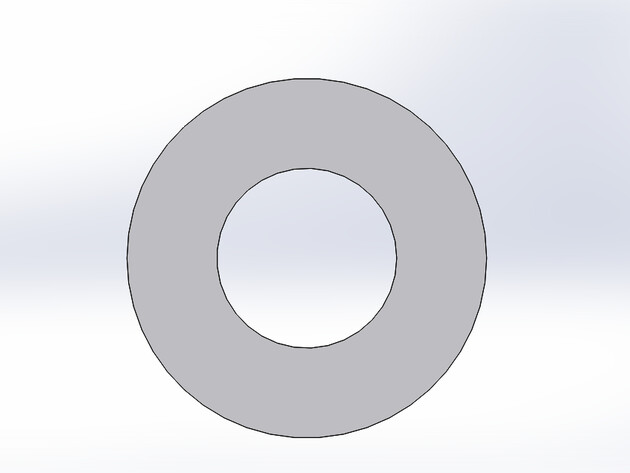

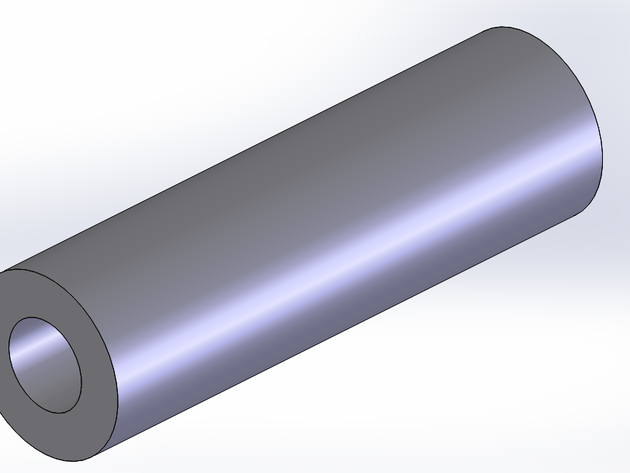

Cylindrical rubber fenders are often used in ports and industrial surroundings, and fixed normally by using chain and anchors. The above listed sizes are the most typical sizes, which can be delivered on short notice. Other dimensions can also be supplied.

Type OD (mm) ID (mm) Max. Length (m) Weight (per m)
CY100 100 50 10 7
CY150 150 75 10 16
CY200 200 100 6 29
CY250 250 125 6 43
CY300 300 150 6 66
CY380 380 190 6 106

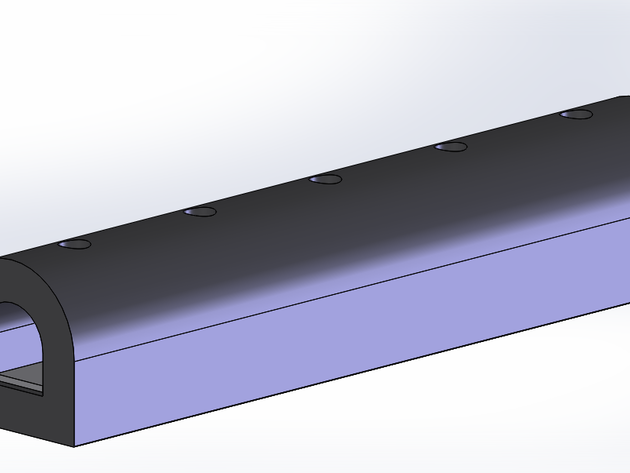

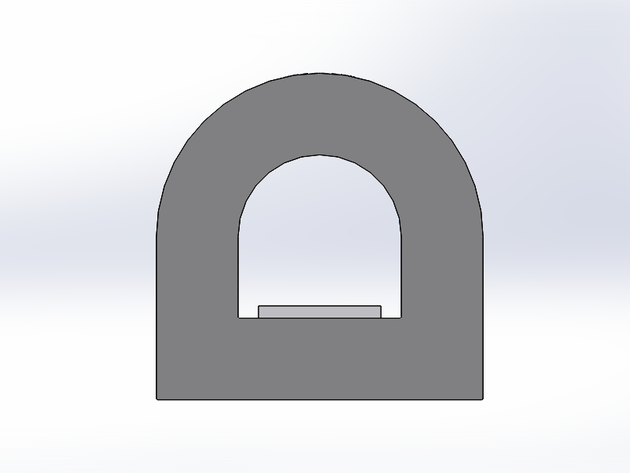

D fenders are typically used at quays and on vessels. They are ideal for smaller quays and wharves to protect boats, tugs, barges and other work crafts.

The D fender comes with a D-shaped chamber, cylindrical chamber or without a chamber. Standard color is black but they can also be supplied in non-marking colors (crème/white). Fixation is normally bolts and/or straps.

Type A B C D Max. Length (m) Weight (per m)
D42 42 27 27 13 20 1
D50 50 60 20 30 12. 5 2.7
D80 80 70 50 30 12.5 5
D100 100 95 60 48 12. 5 8
D125 125 125 60 60 10 13.5
D150 150 150 80 75 10 18.5
D200 200 200 100 100 6 33
D250 250 250 125 125 6 51
D300 300 300 150 150 6 74

D fenders are typically used at quays and on vessels. They are ideal for smaller quays and wharves to protect boats, tugs, barges and other work crafts.

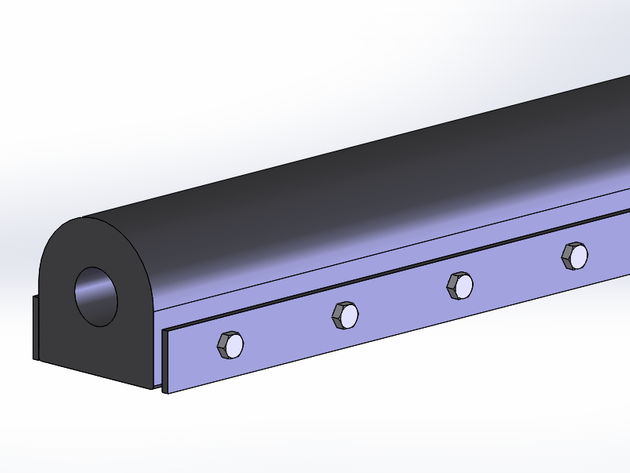

The  DC type fender comes with a cylindrical chamber. Standard color is black but they can also be supplied in non-marking colors (crème/white). Fixation is normally bolts and/or straps.

Type A B C Weight (kg/m)
DC100 100 100 30 10. 1
DC150 150 150 65 20. 6
DC200 200 200 75 38.5
DC250 250 250 100 59
DC300 300 300 125 83.7
DC350 350 350 150 113
DC400 400 400 200 137
DC500 500 500 250 214

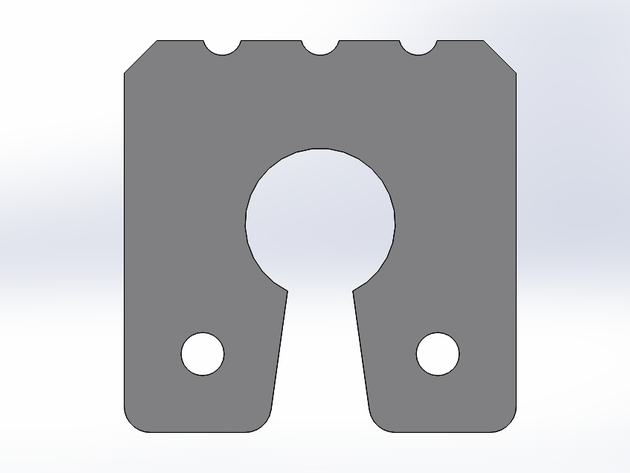

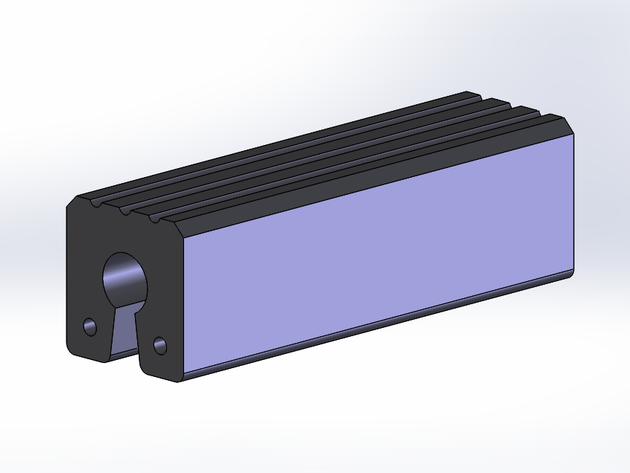

Block fenders are typically used at quays, boats, tugs, barges but also in construction environments (bridges, locks etc). All dimensions can be supplied with cylindrical chamber, D-shaped chamber or without a chamber. Fixation is normally bolts and/or straps.

Type A B C D Max. Length (mm) Weight (kg/m)
KH100 100 100 70 16 16 2000 8
KH200 200 200 130 28 25  2000 33
KH250 250 250 150 33 50  2000 54
KH300 300 300 180 33 60  2000 80
KH350 350 350 210 33 70  2000 114

Wing fenders are used for protection of tugs, quays and harbours.

These fenders can be mounted in a profile or clued with a special glue. Different sizes can also be made. Sll sizes can be drilled and cut to specific lengths as per customer's requirements.

Type A B C D Weight (kg/m)
W180 180 25 100 50 100 11
W215 215 30 150 75 150  20
W245 245 30 150 75 150  21
W280 280 40 200 100 200  36
W320 320 40 200 100 200 38
W370 370 50 250 125 250 57
W410 410  50  250 125   250 60

W fenders are designed for use in extreme conditions to absorb excessive shocks. This type of fender is suitable on the bow and stern of tugs, workboats and icebreakers.

The grooves on the top of the fender provide extra grip and low pressure. The two flexible legs allow easy installation of the W fender with a large or small radius by means of guide rods.

Type A B C D Weight (kg/m)
W320 320 200 100 180 280 51
W400 400 250 110 220 350  81
W480 480 300 135 265 420  120
W500 500 360 125 265 390  156
W500 500 450 90 250 420 180

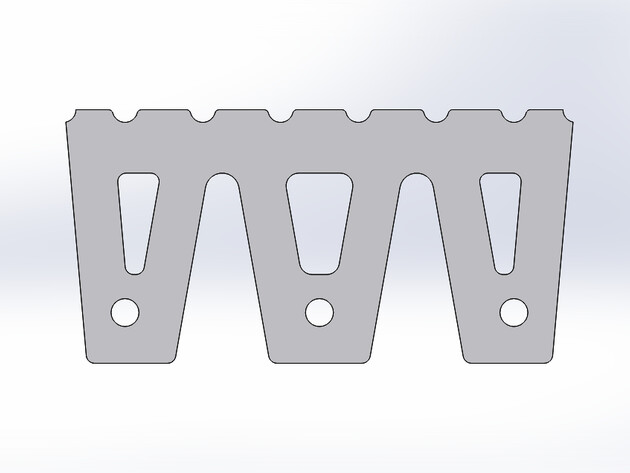

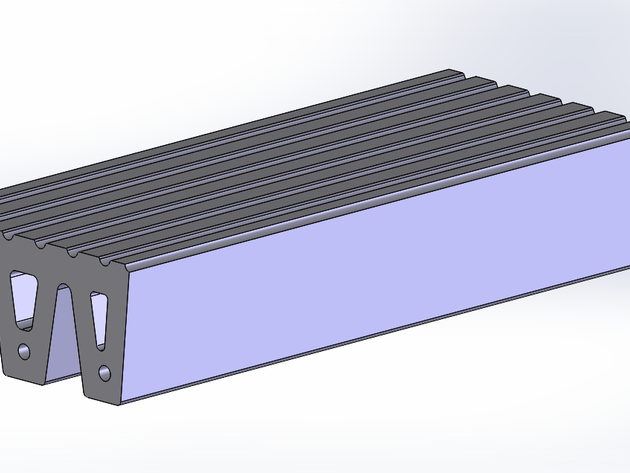

M fenders are designed for use in extreme conditions and to absorb excessive shocks. This type of fender is suitable on the bow and stern of tugs, workboats and icebreakers.

The grooves on the top of the fender provide extra grip and low pressure. The two flexible legs allow easy installation of the M fender with a large or small radius by means of guide rods.

Type A B C D Weight (kg/m)
M400 400 200 40 23 50 150 56
M500 500 250 50 27 60  190  89
M600 600 300 60 33 70 230 132
M800 800 400 80 44 95  305  235

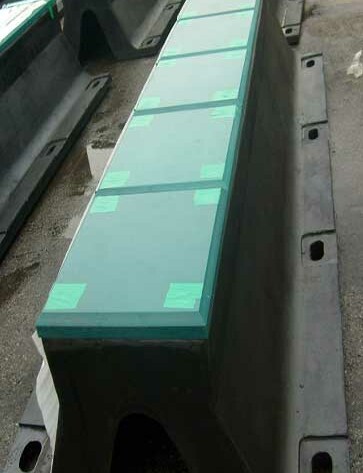

This type of arch fender has a higher capacity compared with standard arch fenders of same size. It is also easy to install and often seen on floating production and storage units (FPSO) and other offshore installations.

The NV fender comes in sizes from 150H (height) to 1000H mm. Length up to 3000 mm.

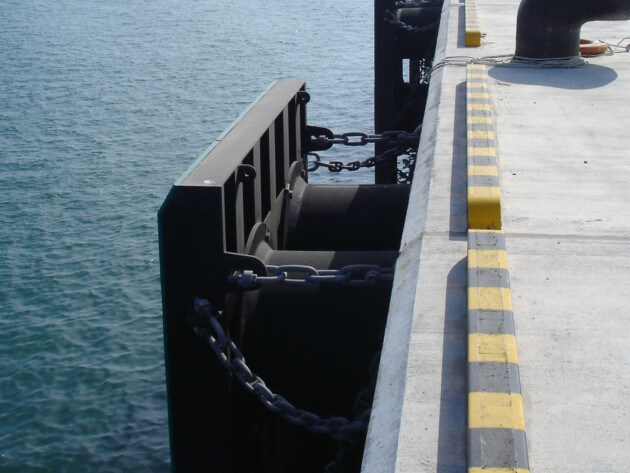

System fenders have a large surface contact which is ideal for absorbing substantial kinetic energy, at the same time as they offer low pressure on the hull and by that not damaging the vessel. In areas with extensive tidal differences these kind of fenders are normally the preferred choice for handling large ships.

From design phase till final delivery, technical and commercial inquiries, PALFINGER MARINE will support you.
