Anchor and mooring winches

WHATEVER ANCHOR APPLICATION, PALFINGER ANCHOR WINDLASSES OFFER A VARIETY OF STYLES AND SIZES TO HANDLE IT.

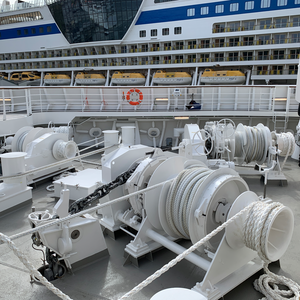

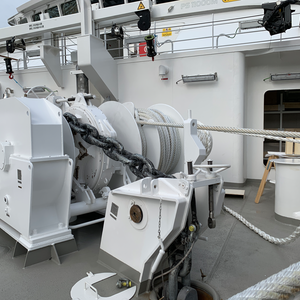

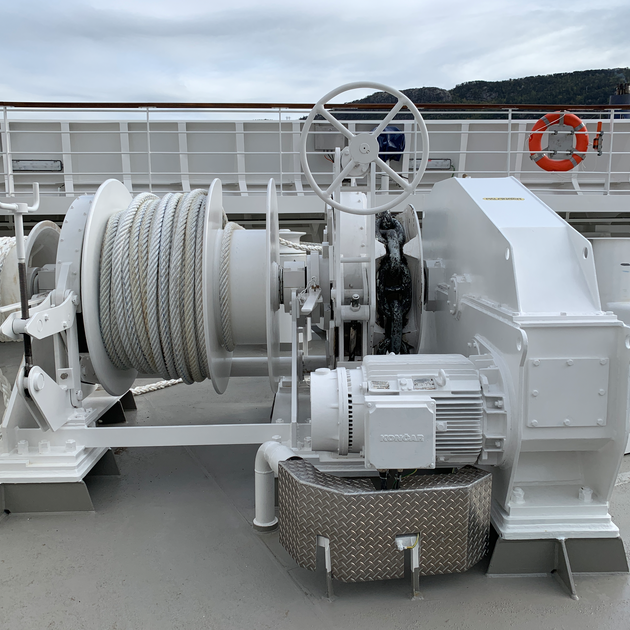

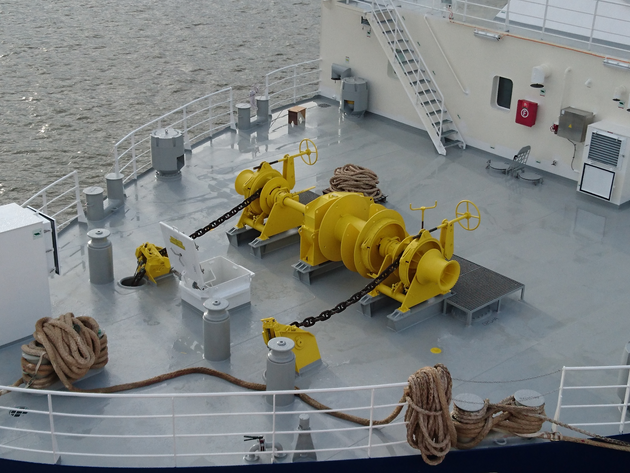

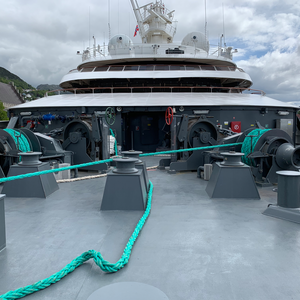

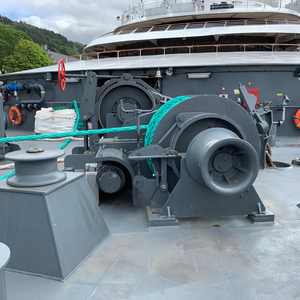

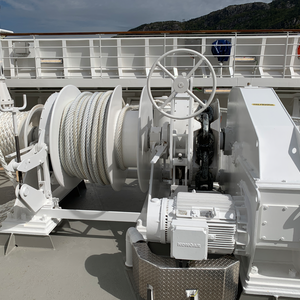

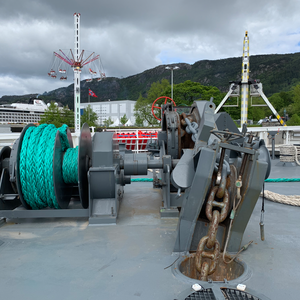

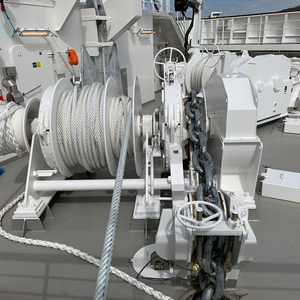

anchor windlass winches

PALFINGER anchor windlass winches are designed for up to 160 mm chains with a wide range of drive options available. Standard features include fabricated steel construction, gears hardened to exceed working load requirements, clutched and braked drum and corrosion resistance. Electric or hydraulic drives are available along with warping heads. Windlasses can be modified to suit customers applications and special operating requirements. The anchor windlass winches from PALFINGER MARINE have rugged design and heavy duty split bronze bearings. The operating mechanism for brakes and clutches are designed for easy and safe manual operation but may also be remotely operated by hydraulic cylinders. The brakes are easily adjustable. The winch design provides easy access to all points for lubrication and inspections. Special windlass winches without cable lifters (wire drum windlass winches) can also be supplied.

features - ANCHOR WINDLASS WINCHES

Electric or hydraulic drive
Rated pull (cable lifters) according to class
Single or double configuration
Chain size from 36-160 mm
Manually operated clutch and band brake

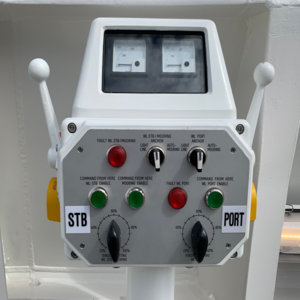

Local control

options - ANCHOR WINDLASS WINCHES

Auto tension/tension control
With or without mooring drum
With or without warping end
Remote control (wireless)
Chain length and/or speed measurement
Bridge operated anchor drop
Hydraulic operated brake

Photo Gallery

PALFINGER MARINE OFFERS THE COMPLETE RANGE OF MOORING WINCHES FOR ALL TYPES AND SIZES OF VESSELS AND WITH ALMOST UNLIMITED LINE PULLS AND SPEEDS.

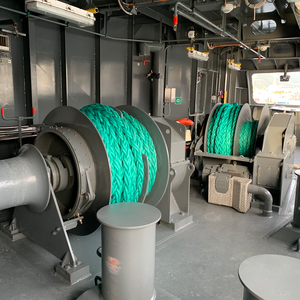

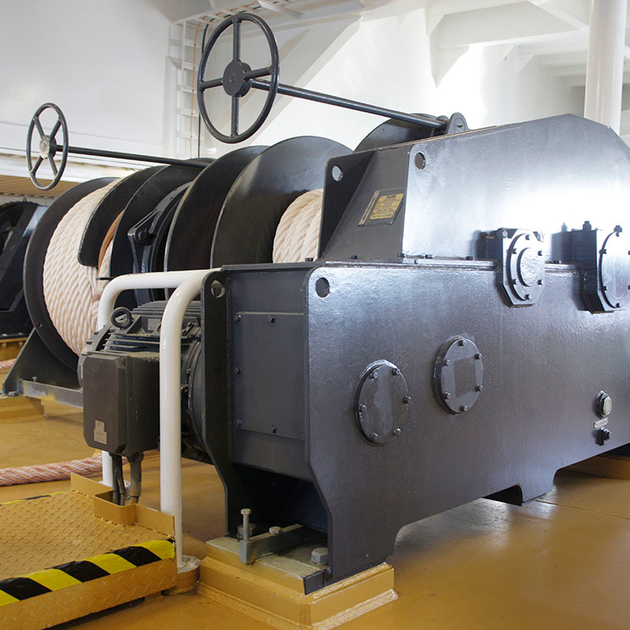

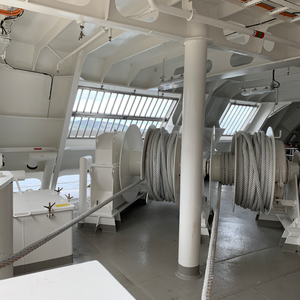

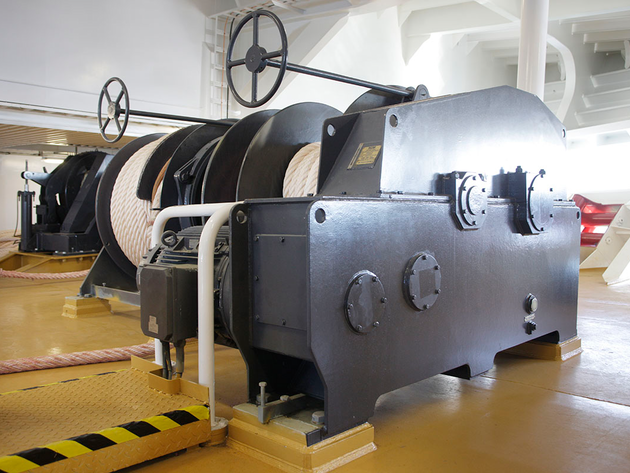

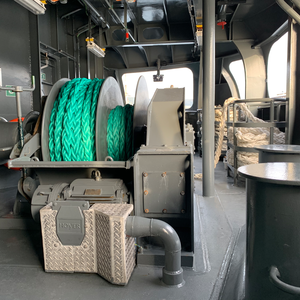

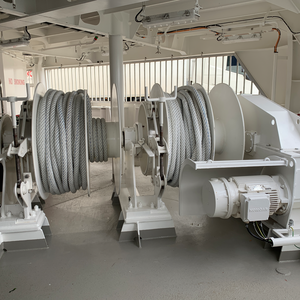

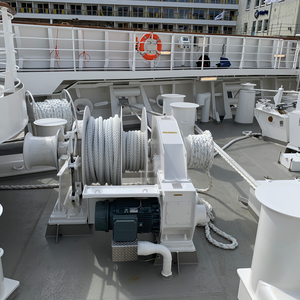

mooring winches

PALFINGER mooring winches have a rugged design and heavy duty split bronze bearings. The operating mechanism for brakes and clutches are designed for easy and safe manual operation, but may also be remotely operated by hydraulic cylinders. The brakes are easily adjustable. The winch design provides easy access to all points for lubrication and inspections. Mooring winches can be supplied with a pulling capacity from 5-40 tonnes and are available in single or double drum configuration, also split drums.

features - mooring winches

Electric or hydraulic drive
Single or multi drum configuration
With or without warping end
Rated pull: 5 -40 tonnes
Manually operated clutch and band brake
Local control

options - mooring winches

Auto tension/tension control
Hydraulic operated band brake
Hydraulic operated clutch
Light line speed
Remote control (wireless)

Photo Gallery

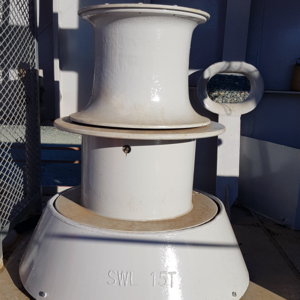

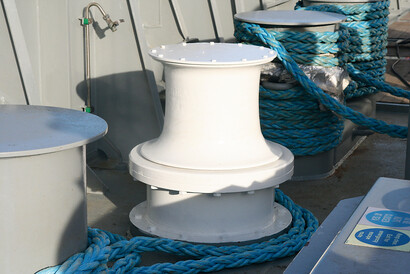

capstans

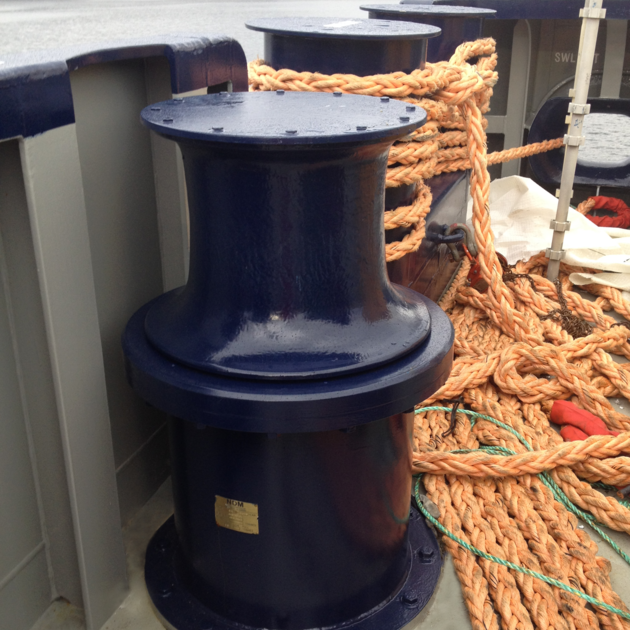

CAPSTANS

All capstans are available with electric or hydraulic drive and are delivered with a rated pull from 3-20 t.

Electric capstans: The electric capstans can be incorporated direct into the deck construction by means of a foundation pipe piece. The foundation is open at the bottom and makes it easy to connect the motor from below deck. The electric capstans are delivered with DOL or frequency converter for variable speed.

Hydraulic capstans: Hydraulic capstans are designed with internal drive systems in order to save space onboard the vessel.

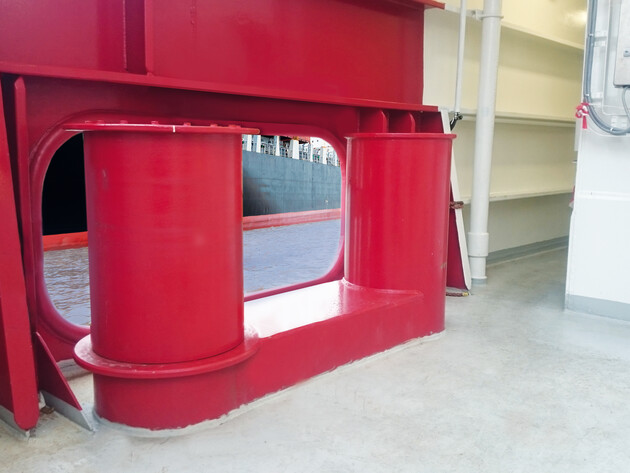

BOLLARD CAPSTANS

The bollard capstans are space-saving onboard the vessel and combine the features of a standard capstan with the features of a standard bollard. Bollard capstans are delivered with electric or hydraulic drive.
