Active Heave Compensated Winches

active heave compensated winches

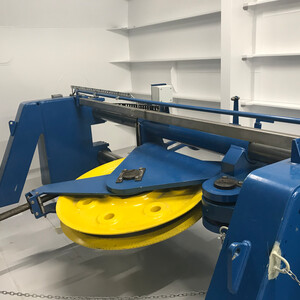

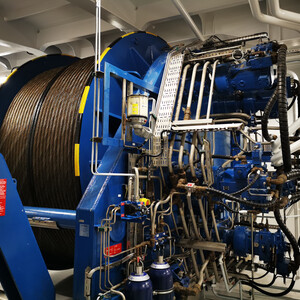

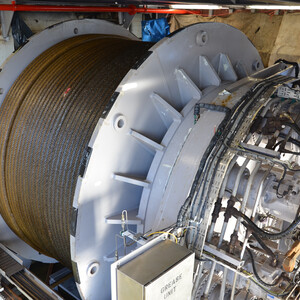

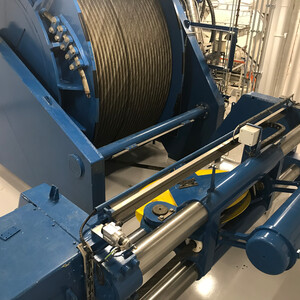

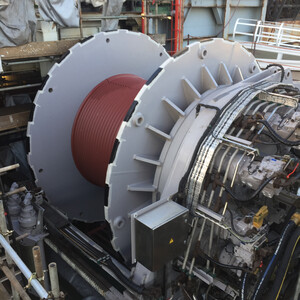

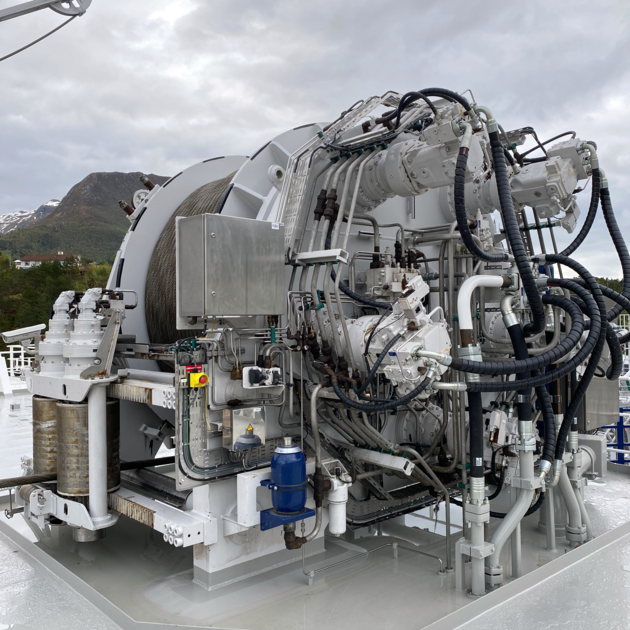

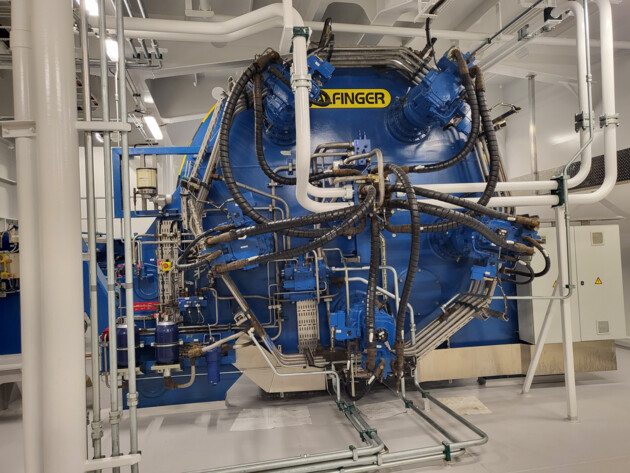

Active Heave Compensated (AHC) winches by PALFINGER's marine business are designed for rough operation in an offshore environment.

The AHC system is specially designed for load handling from a vessel or rig towards the seabed, underwater installations or other fixed targets on the seabed. To control the relative position of a load to a fixed object, active heave compensation (AHC) is used. The position is determined by the control system using the real-time signal of a motion reference unit (MRU) as an input signal. In response to this signal, the AHC system will pay in or pay out to keep the load at a constant elevation.



AHC winches operate in:

  • Normal mode
  • Constant tension
  • Active heave compensation

Power consumption:

The drive system uses the latest available hydraulic technology and smart system design to share the available power as effective as possible between the different functions. This means that installed power will be very low compared to the AHC performance and available hoisting speeds.

AHC performance:

The AHC performance of the PALFINGER winches is a really strong benefit. It is as considered as one of the best systems in the market with the capacity to reduce the movements with 98 %. The drive train has been optimized for the correct speed range and the acceleration capacity is extremely high. The algorithms for AHC is newly developed by experienced engineers to perform in the best possible way together with the secondary controlled system.

Some of the benefits of the used hydraulic system is that there is zero load drop when the brake is removed. With the commonly used closed loop systems the brake removal procedure often requires re-tuning to avoid the hook from moving when the brake is opened. This is never required with this system. The hook will never move when the brake is opened. The system will also make it possible to hold a load with the brakes off, without any slow lowering of the load due to leakage. This means that the load can be held in subsea mode with brake off and all safety systems active for several days if necessary without any movement of the load. This is a great feature when making subsea installations.

AHC winches by PALFINGER's marine business are based on an secondary controlled hydraulic active heave compensation system. A secondary controlled hydraulic winch enables compensation of the heave motion of the vessel with an extremely fast response time at low power consumptions. In response to the signal of a motion reference unit, the winch will pay in/out wire rope. With a secondary controlled hydraulic system, both active heave compensation and constant tensioning are available on the winch. Our hydraulic driven AHC winches are available up to 400T SWL.

PALFINGER delivers electric driven winches with active heave compensation. High power, low inertia E-motors allow real-time compensation of the heave motion of the load. In response to the signal of a motion reference unit, the winch will pay in/out wire rope. With an electric system both active heave compensation and constant tensioning are available on the winch. Electrical driven AHC winches are available up to 20 T SWL.

  • Hydraulic or electric drive
  • SWL from 10–400 metric tons
  • Wire length up to 3,000 meters
  • State-of-the-art control system

  • Spooling device
  • Wire sheaves
  • Overboarding sheaves
