Portable Platforms

Portable platforms

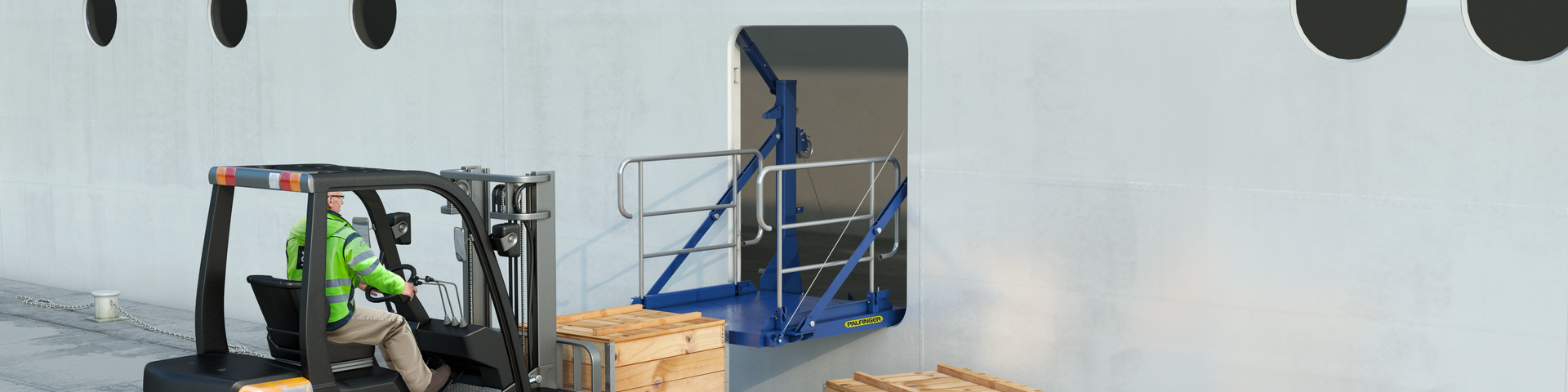

PALFINGER's portable loading platform is built to fit the door load opening with a reach of approximately 1400 mm outside the ship shell to accommodate safe provisioning with pallets. Only one operator is needed and it can be removed and stowed by pallet truck when not in use, so that it does not interfere with normal provisioning through the side shell door.

  • Manually operated by hand winch
  • Foldable railings
  • Internal & external loading platform
  • Telescopic locking
  • SWL: 2,00 kg
  • Outreach approximately 1,4 meters
  • Local control
  • Weight approximately 1,000 kg
