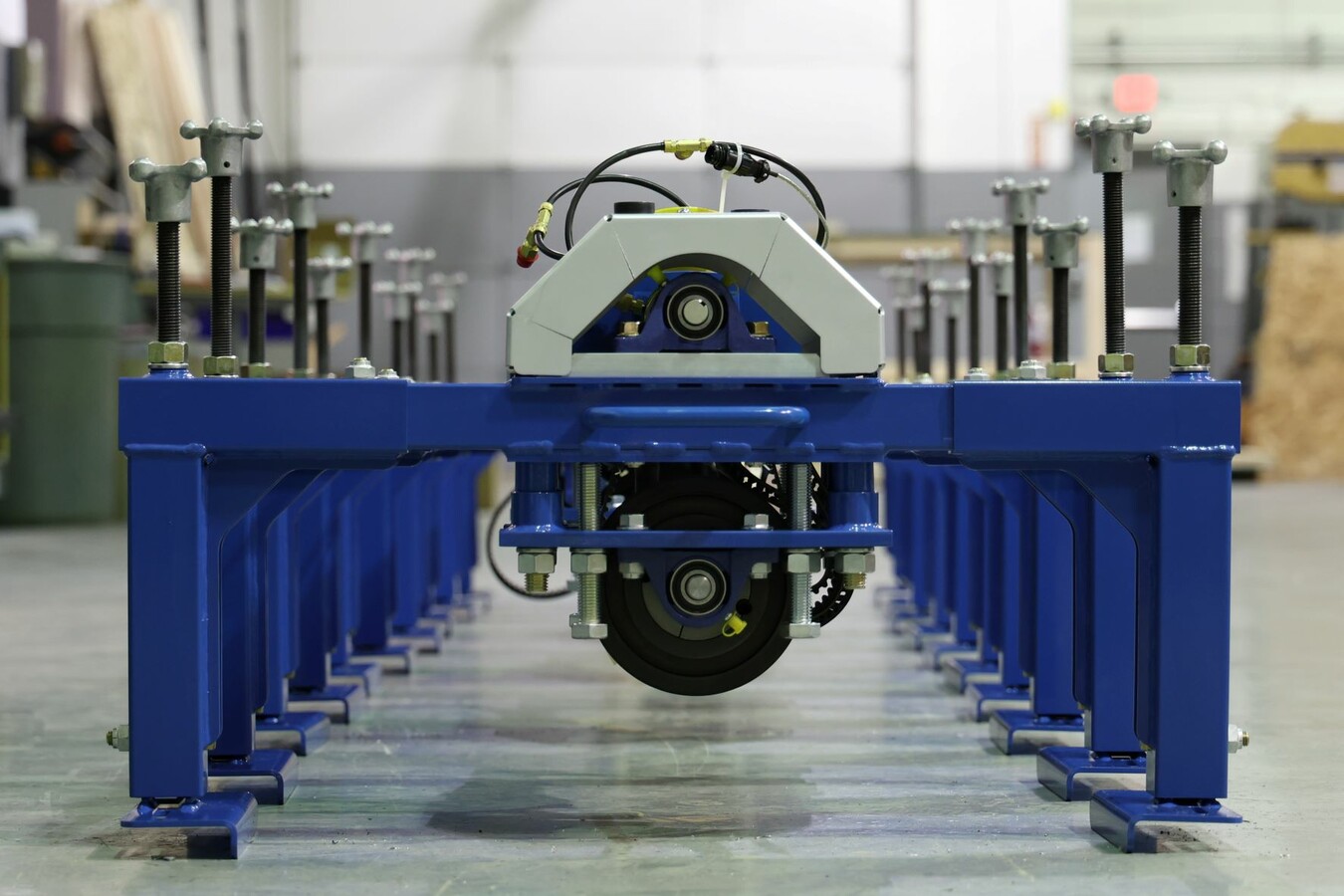

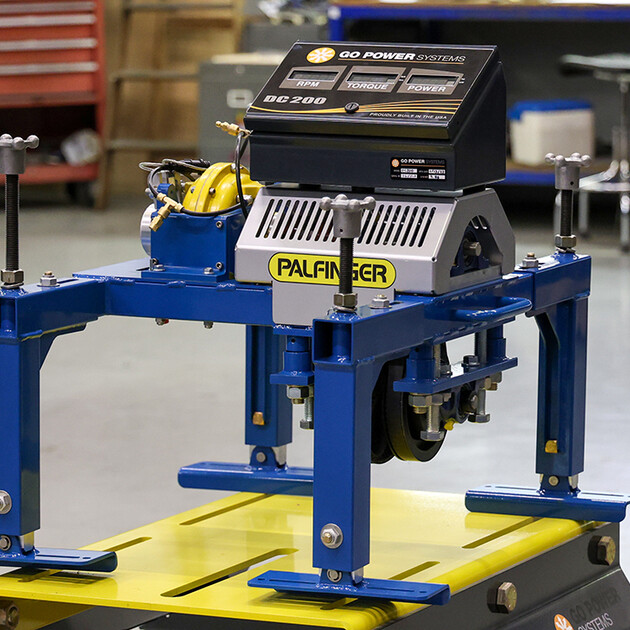

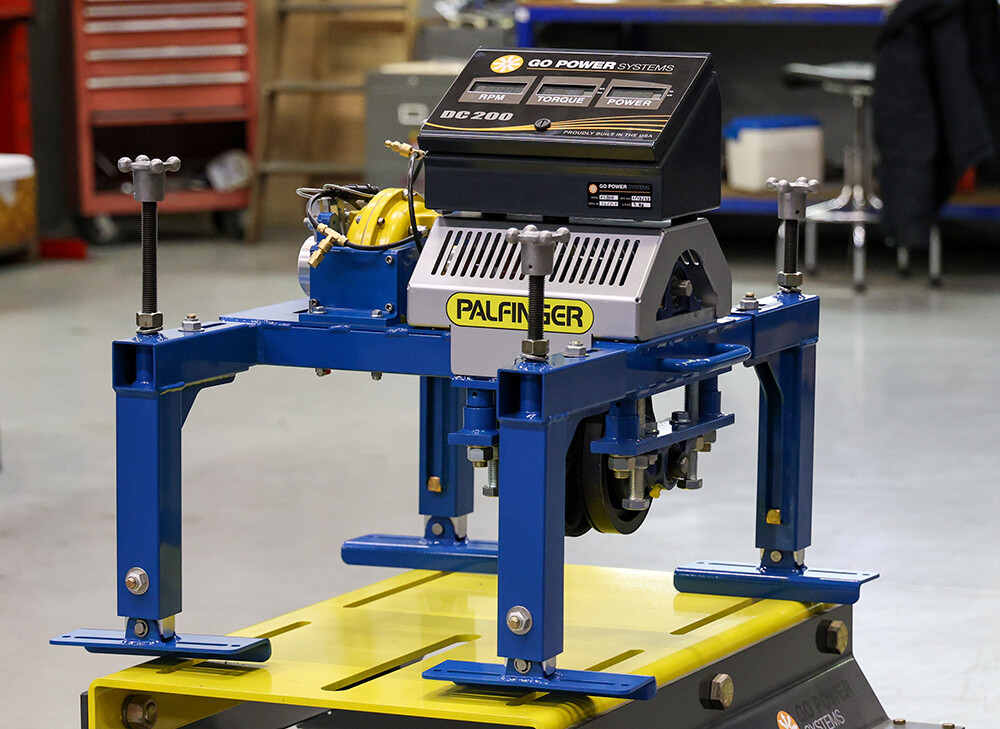

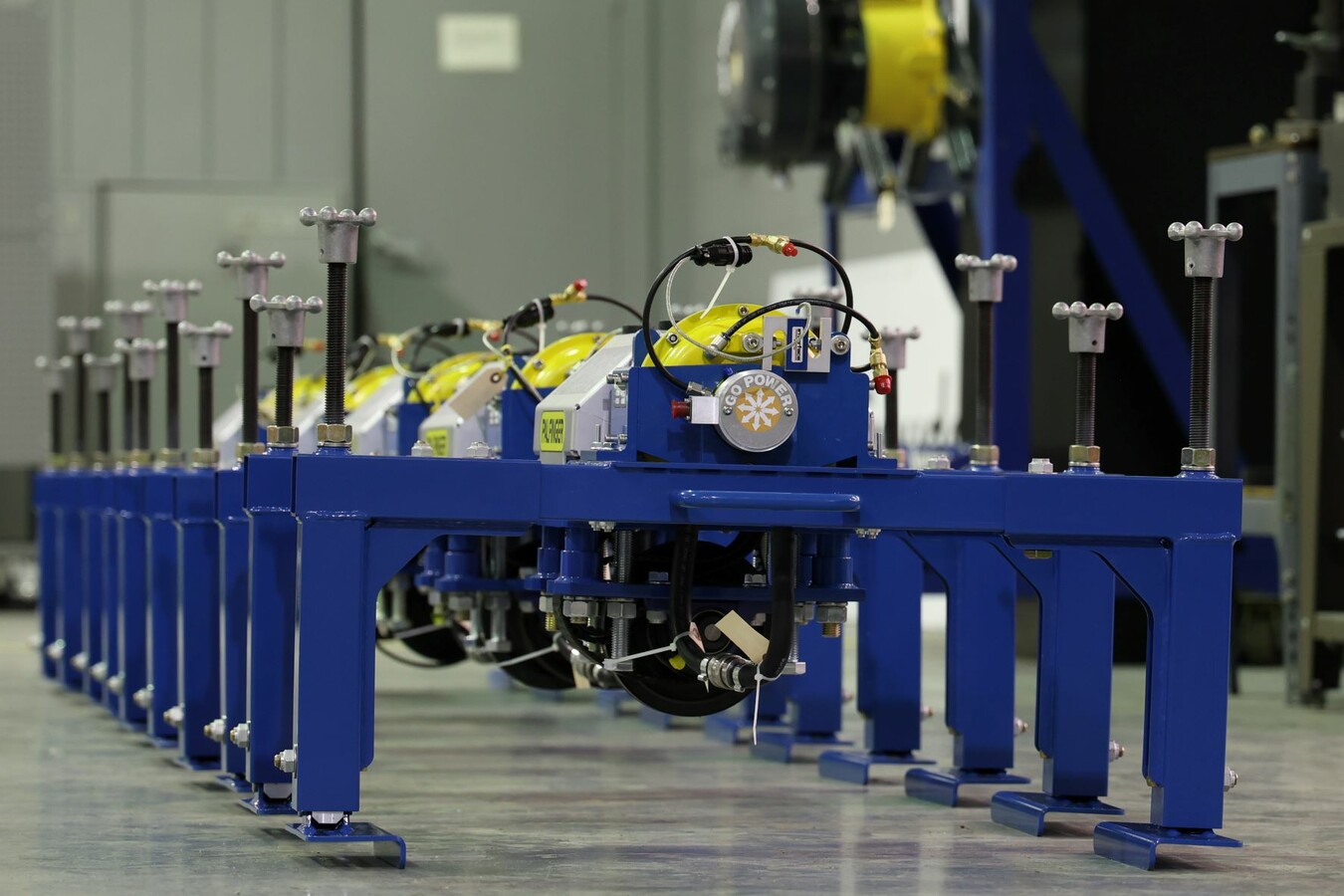

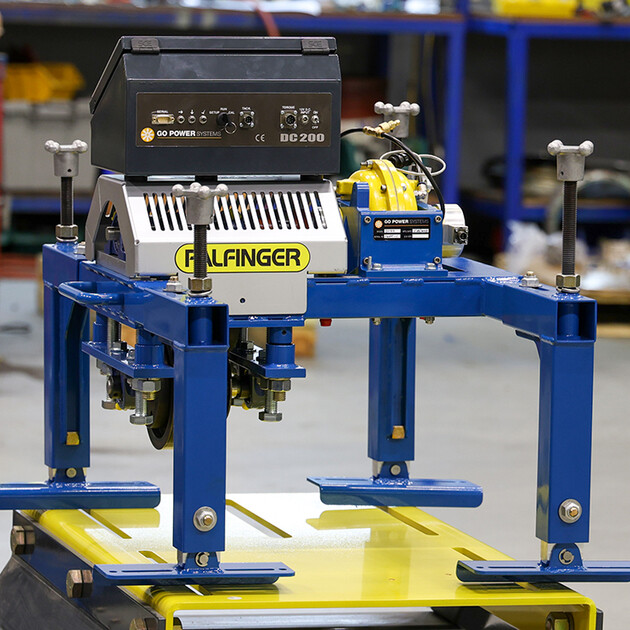

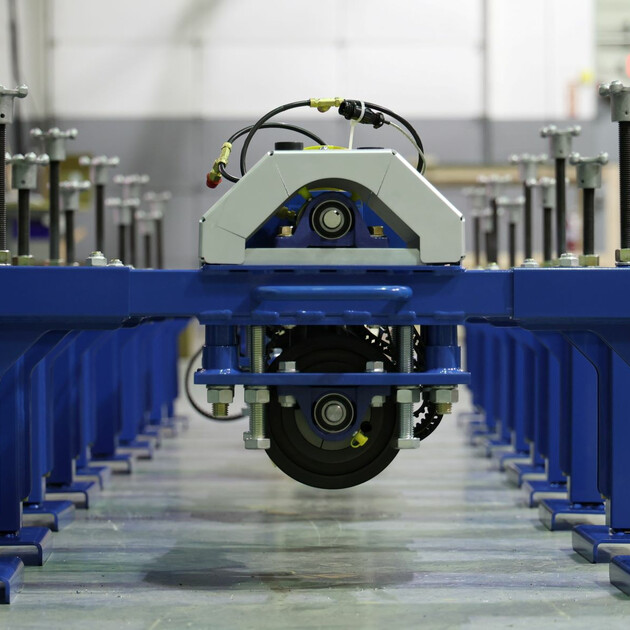

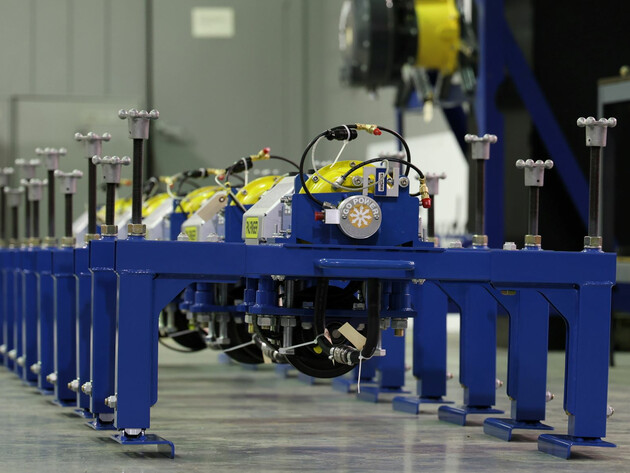

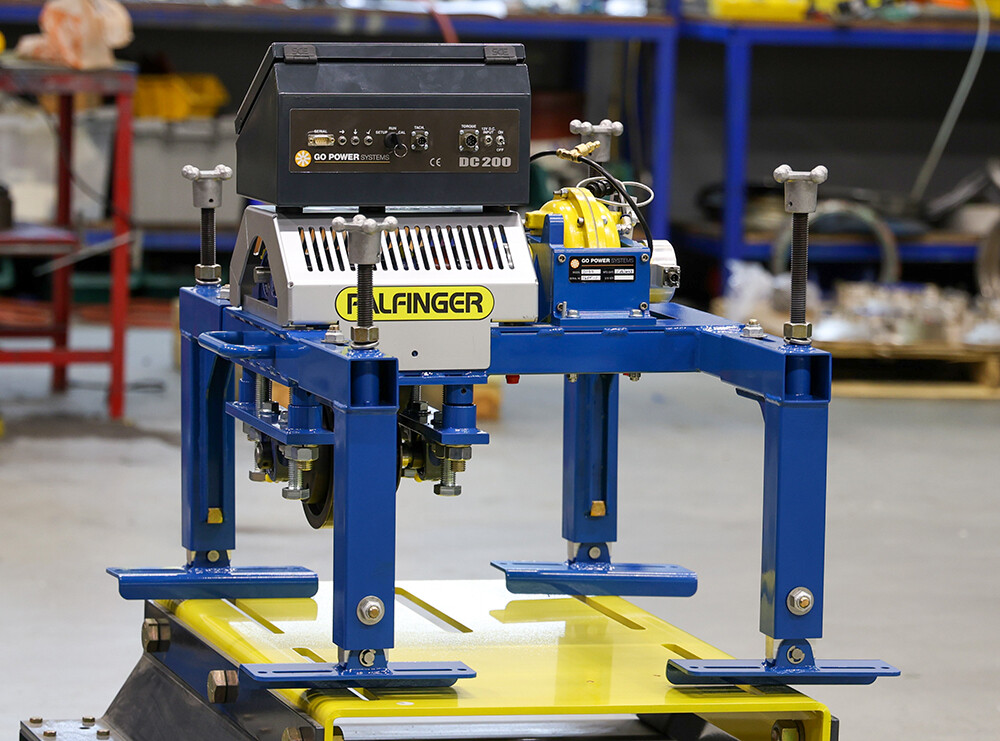

Lifeboat engine dynamometer test stand

The PALFINGER Go Power D100LE, a lifeboat engine dynamometer test stand, called “Dyno”, is a practical solution for testing a multitude of lifeboat engines without the need to launch. The system enables safe and user-friendly tests at reduced risk, while uniquely simulating real world conditions – without weather dependency or high sea complications.

The lifeboat engine dynamometer test stand guarantees:

Maximum safety
Minimum set-up time
High flexibility

View the specifications

Using the Dyno presents opportunities to discover and pro-actively rectify potential or hidden issues that could otherwise go undetected with pro-longed, minimally loaded use. PALFINGER MARINE has developed the system to further ensure the engines' performance at an optimal level if ever the lifeboat is called upon in an emergency.

The system includes:

Dyno w/mounting platform
Strain gauge load cell
Water inlet valve
Speed sensor
Inlet/discharge hoses 15 ft
Carrying case

Specifications

Type of absorption: water brake
Construction: high-strength aluminum
Lubrication: greased bearing
Rotation direction: clockwise or counter-clockwise
Torque sensor: strain gauge load cell
Speed sensor: 60 tooth gear with inductive pulse pickup
Mainshaft: 3/4 in hardened stainless-steel shaft with keyway

Water requirements

Fresh water source
Standard residential hose
Inlet: 1/2 in, 1 gpm fl ow
Outlet water discharged out of the hull
Minimum supply pressure: 28 PSI

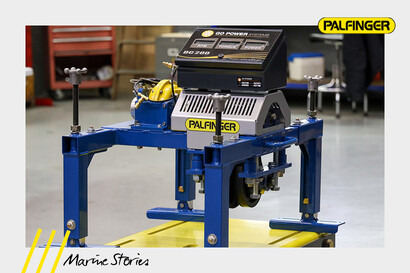

Lifeboat Engine Testing: PALFINGER Ensures Safety Through Innovation
