PQBS-D-P

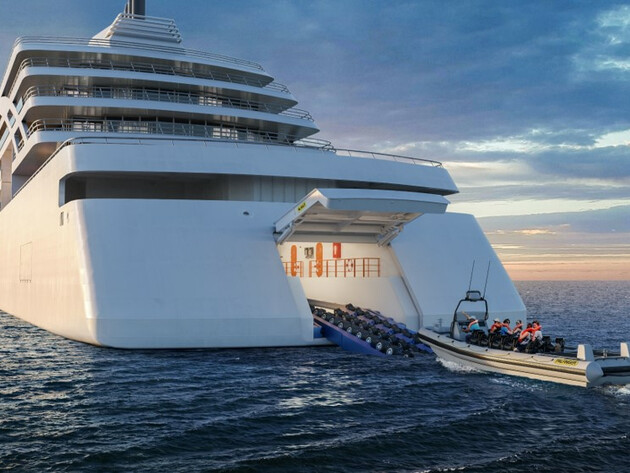

SLIPWAY AND STERN ENTRY SYSTEM WITH QUAD WHEEL DRIVE UNITS

CONFIGURATION

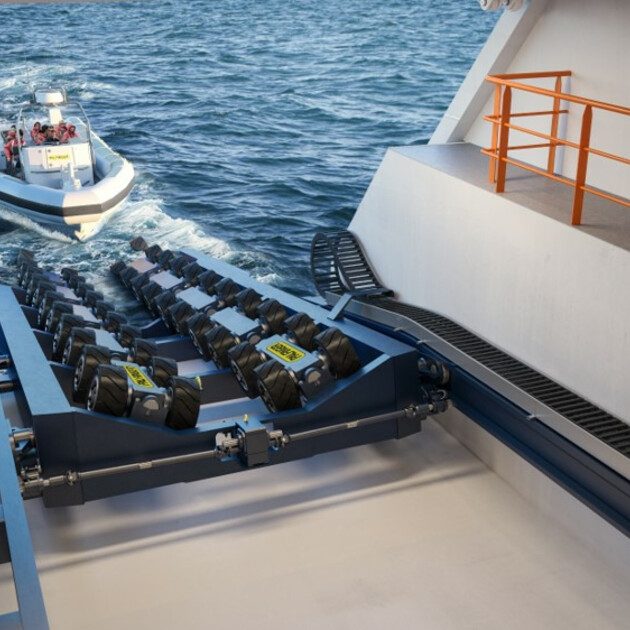

  • Quad wheel drive units on slipway frame
  • Drive mechanism for slipway frame

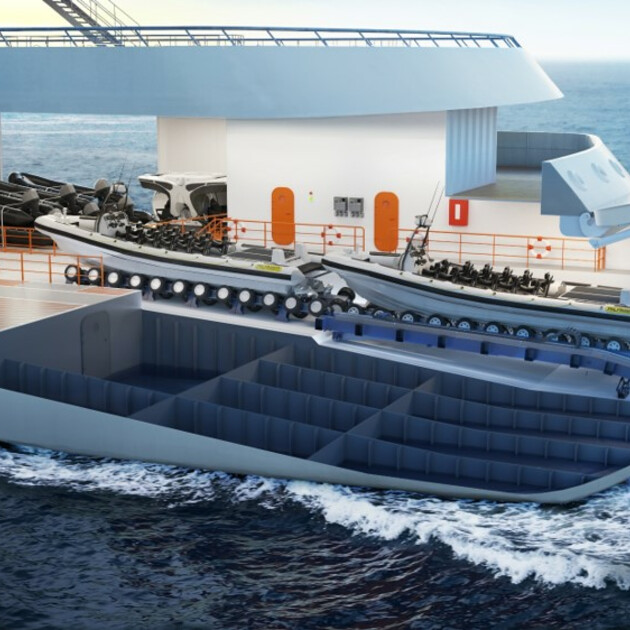

  • Parking position for addition boat

MAIN FEATURES

SWL:                                               Up to 15 tons
Wheel drive system:                   Hydraulic
Quad wheel drive units:             Tilting and adapting to different hull shapes
Slipway operation:                       Semi-automatic with single-operator
Slipway slope length:                  According to customers request
Slipway angle:                               Up to 12° slope angle
Slipway access/entrance:          Via submerged wheel units on slipway frame
Boat guiding system:                  Tilting quad wheel units and guide bumpers
Slipway frame dimensions:       Designed to purpose and vessel interface
Slipway frame suspension:        Load bearing travelling rails
Slipway frame movement:         Hydraulic operated rack and pinion drive system
To/from parking position:           By quad wheel drive units



OPTIONS

  • Remote control from daughter craft
  • Various remote control options on vessel side
  • Power and control system redundancy
  • Emergency launch and recovery by accumulator and UPS
  • Higher slope angle and/or SWL (if possible/feasible)
