AHC cranes
Active heave compensated (AHC) cranes stand for trouble-free operation in the most extreme conditions. PALFINGER delivers AHC offshore cranes ranging from smaller models for SOV’s to larger models for subsea lifts, in addition to special systems for module handling deployments. Tailor-made for the harsh offshore environment, they combine low power consumption with high performance. All components are placed as low as possible to ensure a remarkably low weight and low center of gravity. In combination with high lifting capabilities, this leads to a maximized cargo capacity on deck. Offering outstanding operator ergonomics and maintenance access, our active heave compensated cranes come with built in energy storage systems for AHC operations and an optimized drive train for correct speed, accuracy, and high capacity. For further increasing total energy efficiency, the crane can be delivered with our energy recuperation system allowing excess energy to be recuperated and returned to vessel grid.
special developments:
- Hoisting capacity up to 250 metric tons
- Jib radius up to 50 meters (engineering to order)
- 3,000-meter wire capacity for standard range
- Low weight and center of gravity
- Low power consumption with built-in energy storage system

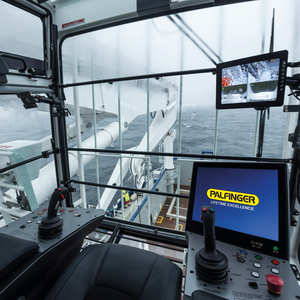

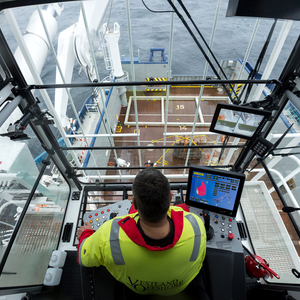

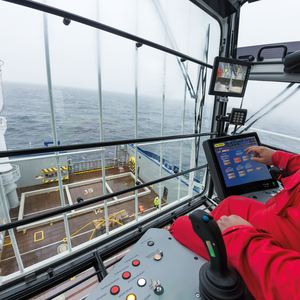

- Fully equipped operators’ cabin
- Overload protection systems: AOPS / MOPS
- Operator support systems: Constant Tensioning / Suction Lift-Off
- Flood lights / helicopter lights
- Boom tip and winch cameras
- Emergency back-up control system for emergency operation according to applicable rules
- Design according to latest DNV-ST-0378
- Aux AHC winch with personnel lift
- Tugger winches
- Remote access for technical support and troubleshooting during warranty period
- Pedestal adapter
- Lift planning tool
- Remote access system extending after warranty period
- Energy recuperation system, returning energy to vessel grid
- Anti-collision system
PALFINGER can deliver AHC cranes with SWL ranging from 5 to 250 tons and wire capacities exceeding 3,000 meters.

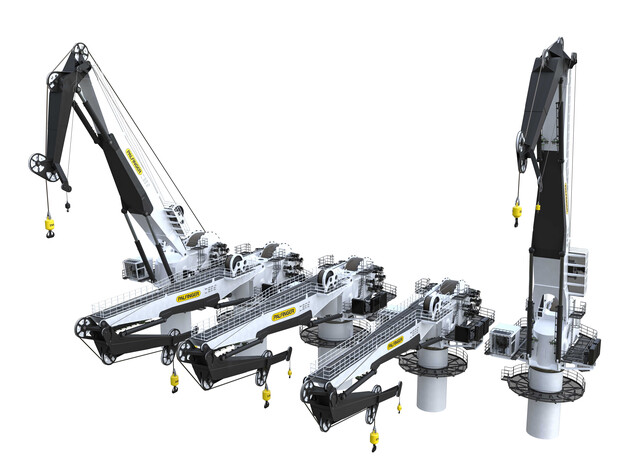

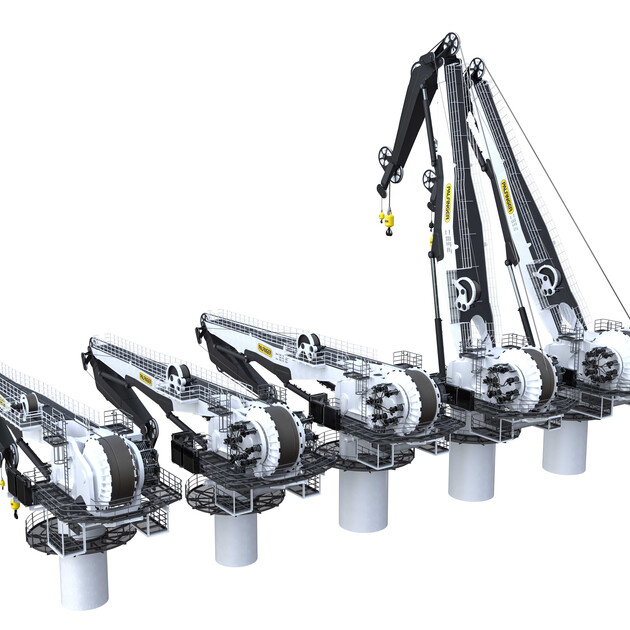

The standardized range listed below has pre-designed elements and can be offered with a shorter lead time. Other configurations are available on request.
| Crane type | Main winch SWL | Max. load harbour (DNV) | Main winch wire capacity | Aux winch SWL | Aux winch capacity (harbour) | Aux winch wire capacity | Power require-ment | Total moment | Operating weight |

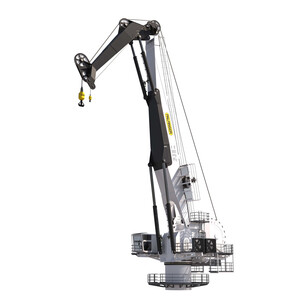

| DKF1600C-100T | 100T | 100T@15m 35T@35m |
3000m | 10T | 10T@35m | 1000m | 900kW | 3200Tm | 279T |

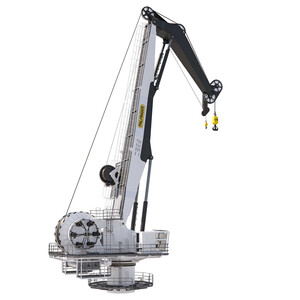

| DKF1600C-150T | 150T |
150T@13m |
3000m | 15T | 15T@35m | 1000m | 900kW | 3400Tm | 325T |

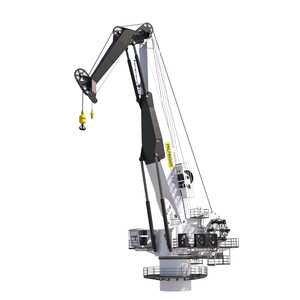

| DKF2500C-150T | 150T |
150T@14m |
3000m | 15T |
15T@35m |
1000m | 1150kW | 4000Tm | 372T |

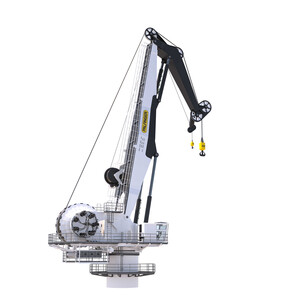

| DKF2500C-200T | 200T |
200T@14m |
3000m | 20T |
20T@35m |
1000m | 1150kW | 5000Tm | 435T |

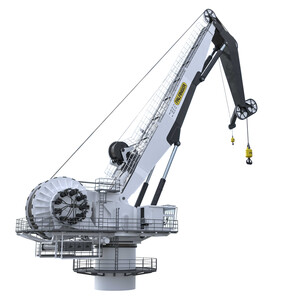

| DKF2500C-250T | 250T |
250T@13m |
3000m | 25T |
25T@37m |
1000m | 1550kW | 5000Tm | 505T |
Values in table are approximate and subject to detailed configuration.
Other Cranes
Neutralising the North Sea waves

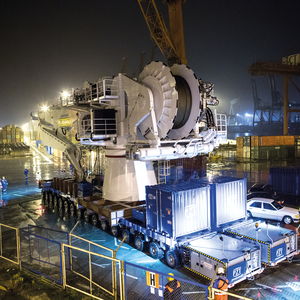

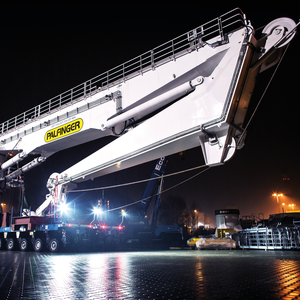

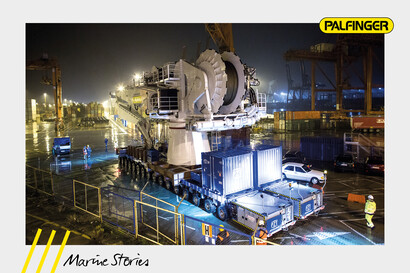

Transport of our 100 T AHC crane
