Telescopic Boom Cranes

Telescopic Boom Cranes

Range from 140 up to 12000 kNm

If you are looking for a flexible yet compact solution for the marine, offshore or wind industry, telescopic boom cranes of PALFINGER's marine business are a powerful choice. Based on a pedestal slewing design with hydraulic cylinder luffing, they are particularly compact when stored in parking position. The telescopic boom extension ensures great flexibility in radius, with extensions of up to 36 m making it easy to cover short as well as long distances. In addition, low weight and reduced complexity make the cranes remarkably maintenance-friendly.

Safe and fast unloading of supply vessels and flexible material handling are quick and easy with telescopic boom cranes. They are available with lifting moments from 140 to 12,000 kNm and are supplied according to customer requirements with numerous optional features.

Applications

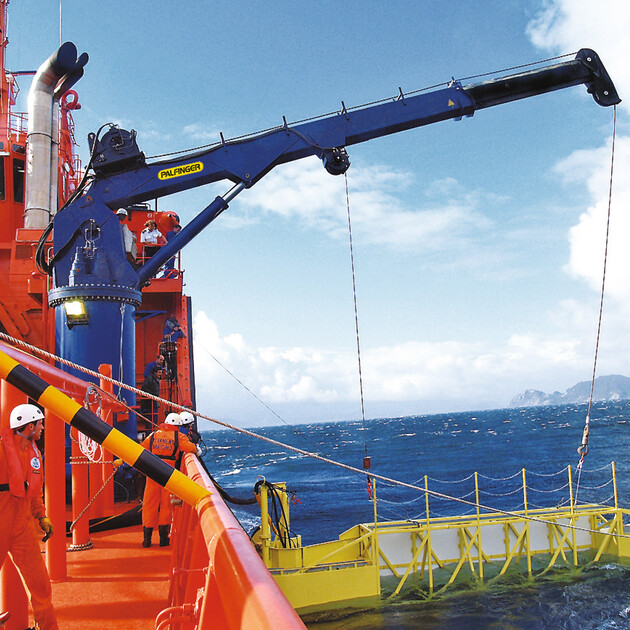

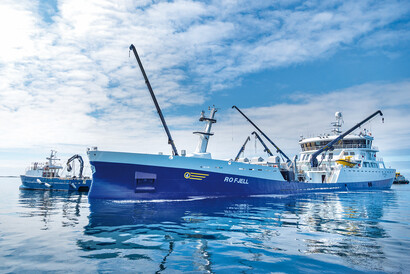

MARINE

The boom extension is a telescopic inner section that allows a more flexible and wider operational radius and leaves the crane stored in a compact position. Low weight and a less complex design make our telescopic boom crane a maintenance-friendly product. The cranes are in operation at fishfarming vessels and bigger service vessels.

  • Service cranes
  • Provision cranes
  • Container and cargo handling cranes

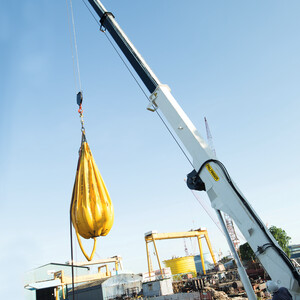

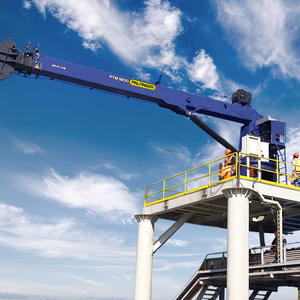

OFFSHORE

The PALFINGER telescopic boom cranes are based on a pedestal slewing design with hydraulic cylinder luffing. The cranes are available in the range up to 12000 kNm lifting moment and are supplied according to customer requirements and numerous optional features. Mounted on rigs, platforms, and offshore vessels the cranes are used as shipboard cranes, for provision handling, and ship-to-ship operations.

  • Deck cranes (shipboard)
  • Provision cranes
  • Ship to ship cranes

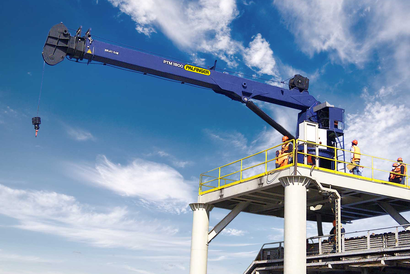

WIND

PALFINGER telescopic boom cranes for the wind industry ensure safe and fast loading and unloading of supply vessels and flexible material handling, servicing as well as handling of other equipment on the substation. The wind cranes are customised to accommodate any sea state (SWH) and optional features add extra functionality for safe operation. The telescopic boom cranes of PALFINGER's marine business for the wind industry are designed according to customer requirements, rules, and regulations.

  • Substation cranes

  • Hoisting capacity up to 50 metric tons
  • Jib radius up to 40 meters
  • Long-life surface treatment: corrosion protection
  • Operation from control platform on crane
  • Integrated Electro hydraulic drive / HPU
  • Continuous slewing
  • Low / high temperature operations
  • Anti-collision system

  • Remote control / operator’s cabin
  • Overload protection systems: MOPS & AOPS
  • Constant tensioning
  • Lifting of personnel – man-riding
  • External hydraulic power packs
  • Spray metalizing
  • Different painting systems
  • Crane certification according to selected rules and regulations
  • Active Heave Compensation (AHC)
  • ATEX Zone 1 and 2 execution
  • Tugger winches

Crane Type Outreach (m) Lifting Capacity (t) Lifting Moment (kNm) Total Moment (kNm) Pedestal Diameter (mm) Dead Weight (t)
PTM Range
PTM 200 6.0-14.0 3.3-1.0 133-198 241 885 2.8-3.2
PTM 400 6.0-14.0 5.5-1.8 252-330 381 885 3.7-4.3
PTM 600 7.5-17.5 7.5-2.2 385-563 603 1095 5.3-6.3
PTM 900 8.2-20.0 9.9-2.7 540-812 980 1325 7.8-9.2
PTM 1200 8.0-20.0 12.0-3.9 780-960 1375 1490 11.5-12.8
PTM 1500 8.0-20.0 15.0-5.1 1020-1200 1765 1490 12.7-14.0
PTM 1800 12.0-36.0 16.0-1.8 648-1920 2555 1770 19.2-23.0
PTM 3000 12.5-18.5 22.0-10.0 1850-2750 3720 1775 27.0

DKT Range

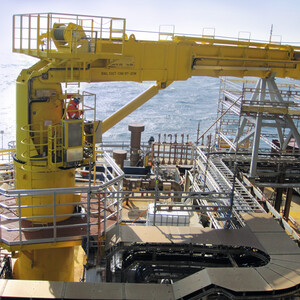

DKT220  30.0 30.0 2200 4000 1800 25.0
DKT300  30.0 30.0 3000 5000 2065 27.5
DKT400  30.0 30.0 4000 6300 2050 30.0
DKT500  32.0 35.0 5000 8000 2240 35.0
DKT800  37.0 50.0 8000 11500 2271 55.0
DKT1000*  40.0 60.0 10000 14400 2536 70.0
DKT1200  43.0 80.0 12000 18000 2550 100.0

*Available only for deck cranes
