Wire Luffing Lattice Boom Cranes

Wire Luffing Lattice Boom Cranes

Range from 4000 up to 30000 kNm

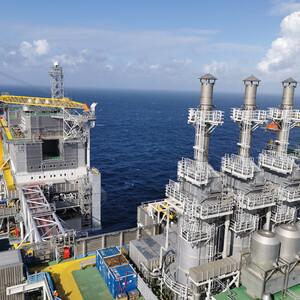

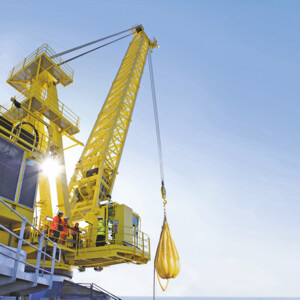

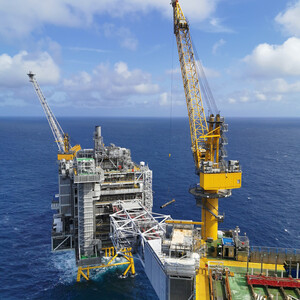

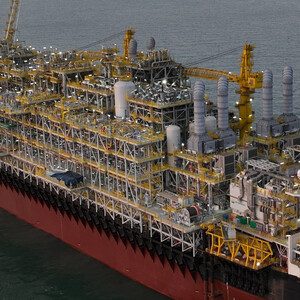

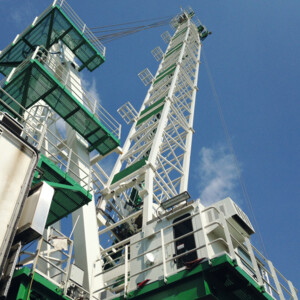

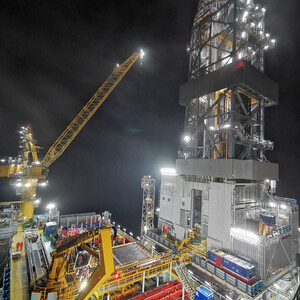

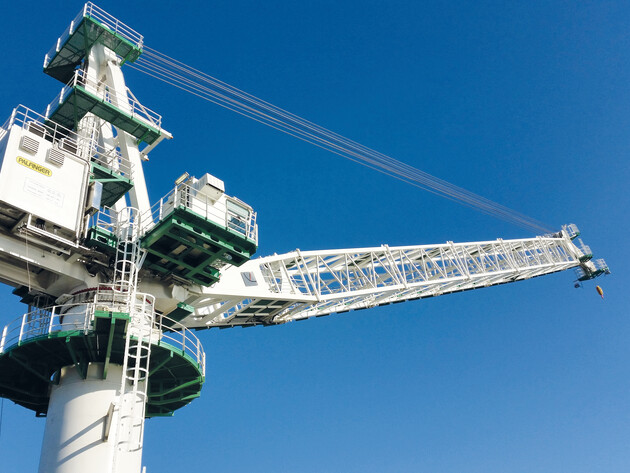

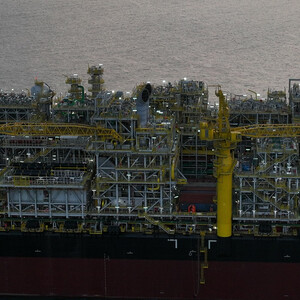

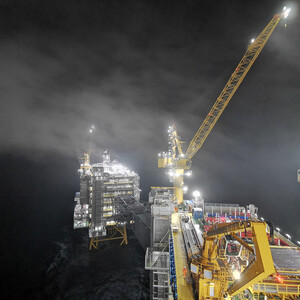

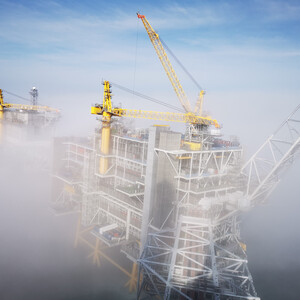

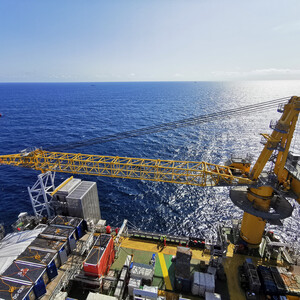

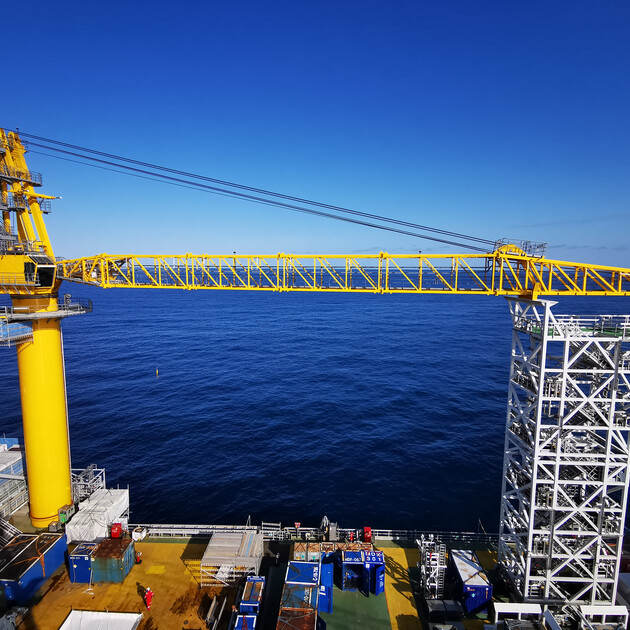

The PALFINGER wire luffing lattice boom cranes are based on a slewing pedestal design. The cranes are state-of-the-art and supplied according to the latest offshore rules and regulations with lifting moments in the range from 4,000 to 30,000 kNm. Wire luffing lattice boom cranes are supplied with built-in electro hydraulic or diesel hydraulic power packs. These cranes are typically used when the needed outreach exceeds 40–50 m, on fixed installations and on drilling rigs, Jack ups, drillships, FPU's, and FPSO's.

  • Deck cranes
  • Ship to Ship cranes
  • Pipe handling cranes
  • Boat handling cranes

  • Hoisting capacity up to 100 metric tons
  • Jib radius up to 70 meters
  • Internal slewing gearing and slewing gears
  • Reduced need for maintenance
  • Electro hydraulic or diesel hydraulic drive
  • Easy access to all types of maintenance
  • Weight optimized
  • Enables operation with a significant wave height up to 6 m
  • Operator’s cabin
  • Anti-collision system

  • Tugger winches
  • Constant Tensioning
  • Remote control
  • Design according to API-2C / ABS /EN13852 / NORSOK / BV / LRS
  • AOPS / MOPS / Tensioning
  • Personnel lift
  • Metalizing
  • ATEX Zone 1 and 2 execution

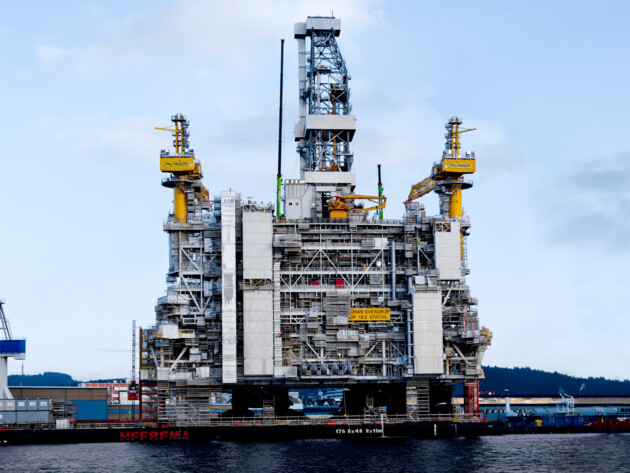

Fully Electric Crane Design

PALFINGER's marine business has developed a new and innovative range of wire luffing lattice boom cranes with fully electric drive based on VFD technology, designed according to EN13852-1 and NORSOK R002. The cranes offer high quality alongside optimized weight and need no oil and less power, making them remarkably environmentally friendly. In addition, reduced maintenance needs minimize total lifetime costs.



ADVANTAGES

  • Less vibration, less noise
  • Less components
  • Smoother and more predictable operations
  • Reduction in maintenance cost
  • Subject to wear and tear
  • No risk of oil spill
  • Less power consumption

  • Hoisting capacity up to 100 metric tons
  • Jib radius up to 70 meters
  • State-of-the-art control system
  • Safe to use up to significant wave height up to 6 meters
  • Optimized load charts to ensure flexibility in operation
  • Easy maintenance, access to all areas of the crane
  • Remote access of crane for quick support and fault detection
  • Off the shelf components to ensure easy maintenance and quick supply of spare parts

  • Tugger winches
  • Aux winch
  • Fiber rope solution
  • Pedestal adapter
  • Hazardous zone classification
  • Lift planning tool
  • Remote diagnostic
  • Winch below deck
  • Design according to EN 13852 / NORSOK

Crane Type Max. Outreach (m) Max. Lifting Capacity (t) Lifting Moment (kNm) Total Moment (kNm) Pedestal Diameter (mm) Dead Weight (t)
DKW 400 35.0 30.0 4000 6300 2050 20.0
DKW 500 37.0 35.0 5000 8000 2240 25.0
DKW 800 43.0 50.0 8000 11500 2271 40.0
DKW 1000 47.0 60.0 10000 14400 2536 50.0
DKW 1200 50.0 80.0 12000 18000 2550 60.0
DKW 1600 55.0 100.0 16000 34000 3166 80.0
DKW 2000 65.0 125.0 20000 44000 3987 120.0
DKW 2500 70.0 150.0 25000 50000 4000 130.0
DKW 3000 80.0 200.0 30000 60000 4500 160.0
Download as PDF

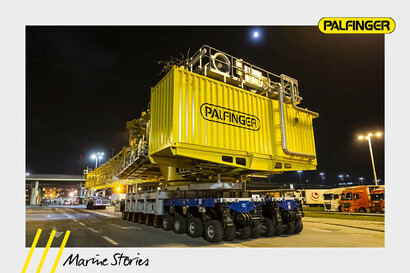

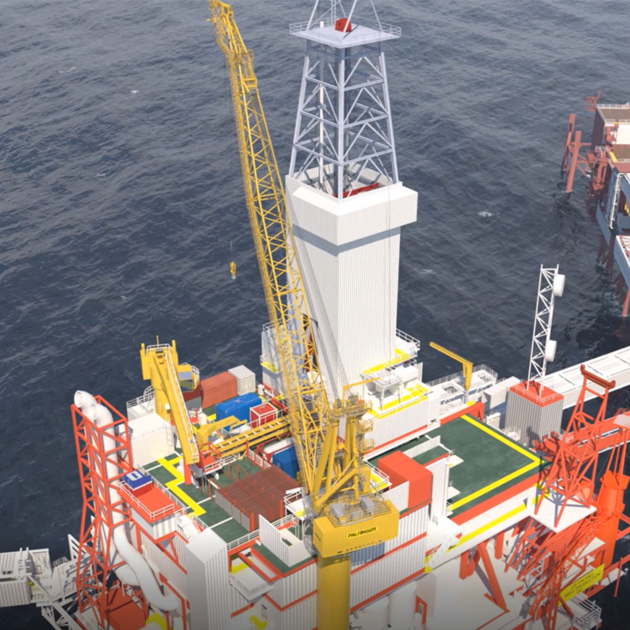

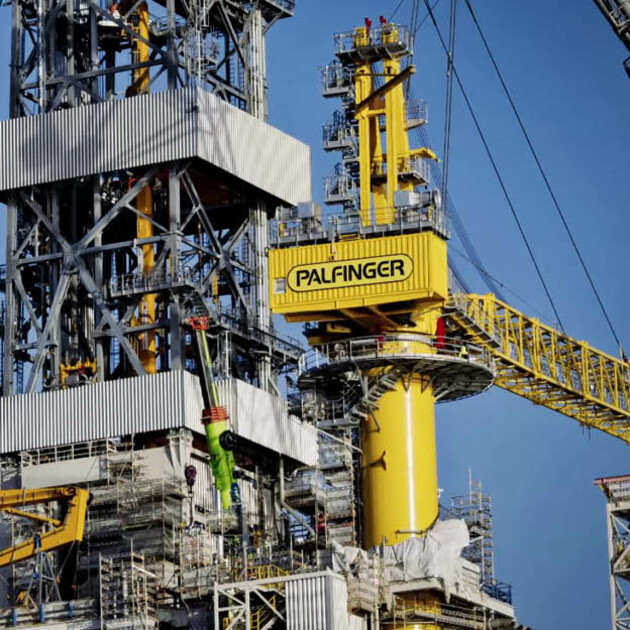

Johan Sverdrup crane installation Through the Eye of the Needle
