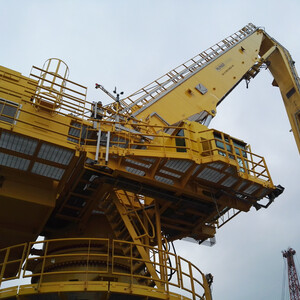

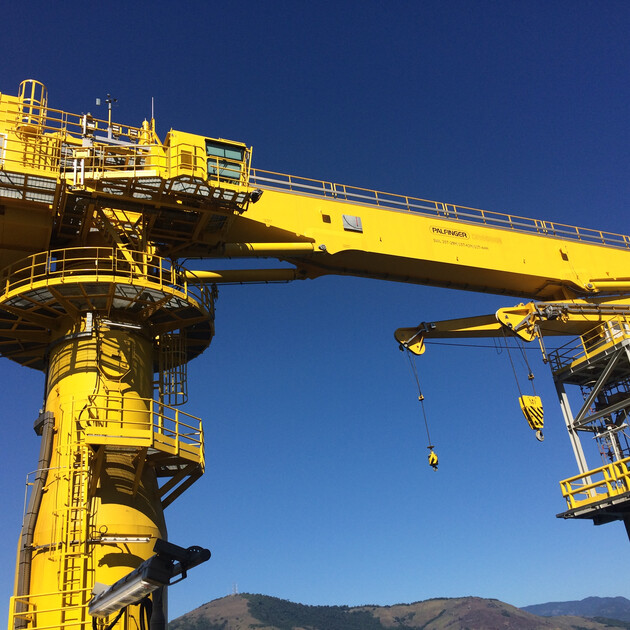

Knuckle Boom Cranes

Knuckle Boom Cranes

Range from 130 up to 30000 kNm

Applications

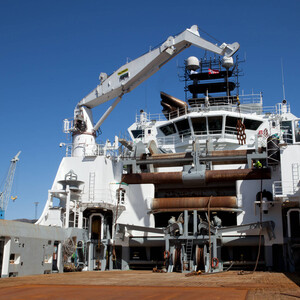

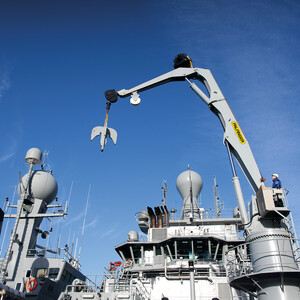

MARINE

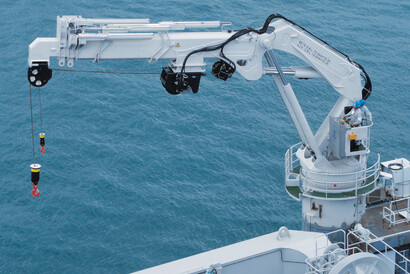

PALFINGER knuckle boom cranes for marine applications move extremely heavy loads while the compact fold down position leaves more room on deck. The improved level of control makes the knuckle boom crane ideal for offshore lifting operations. The cranes are a preferred solution for heavy lifting of provision, service equipment or container and cargo handling.

  • Provision cranes
  • Service cranes
  • Container and cargo handling cranes

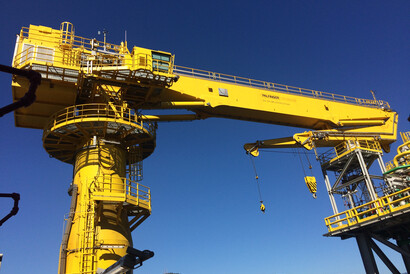

OFFSHORE

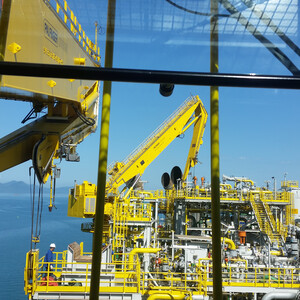

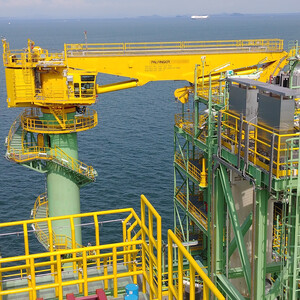

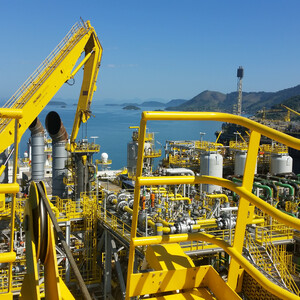

The knuckle boom cranes of PALFINGER's marine business are designed to lift high loads with extended jib and provide the operator with great flexibility during lifting operations. Severe weather conditions and heavy seas introduce oscillating motions to suspend loads. The improved level of control makes the knuckle boom crane ideal for offshore lifting operations on rigs, platforms or offshore vessels in higher sea states.

  • Deck cranes (shipboard)
  • Ship to Ship cranes
  • Pipe handling cranes
  • Boat handling cranes

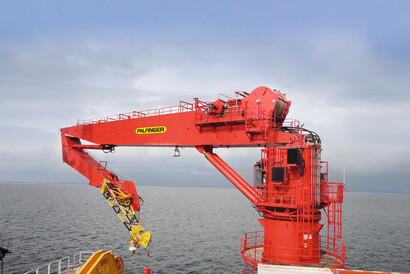

WIND

PALFINGER knuckle boom cranes for the wind industry ensure safe and fast loading and unloading of supply vessels and flexible material handling on the substation. The wind cranes are customized to accommodate any sea state (SWH). Optional features add extra functionality for safe operation. Knuckle boom cranes for the wind industry are designed according to customer requirements.

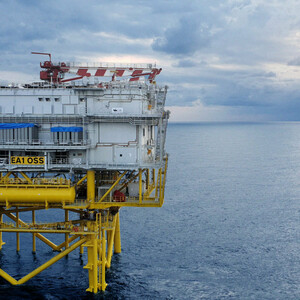

  • Substation cranes

  • Hoisting capacity up to 100 metric tons
  • Jib radius up to 50 meters
  • Long-life surface treatment: corrosion protection
  • Operation from control platform on crane
  • Integrated electro hydraulic drive / HPU
  • Continuous slewing
  • Low / high temperature operations
  • Anti-collision system

  • Constant tensioning
  • Remote control/operator's cabin
  • Overload protection systems: MOPS, AOPS
  • Lifting of personnel – man-riding
  • External hydraulic power packs
  • Active Heave Compensation (AHC)
  • ATEX Zone 1 and 2 execution
  • Tugger winches
  • Spray metalizing
  • Different painting systems
  • Crane certification acc. to selected rules and regulations

Crane Type Outreach (m) Lifting Capacity (t) Lifting Moment (kNm) Total Moment (kNm) Pedestal Diameter (mm) Dead Weight (t)
PKM Range
PKM 150  8.0-12.0 2.1-1.1 132-168 267 885 3.0-3.3
PKM 250  10.0-14.0 2.9-1.8 242-290 437 885 3.8-4.1
PKM 350  12.0-16.0 3.6-2.3 370-430 644 1095 5.5-5.8
PKM 550  14.0-18.0 4.7-3.2 573-660 1017 1325 7.5-7.8
PKM 750  14.0-18.0 6.1-4.2 749-855 1316 1490 10.3-11.1

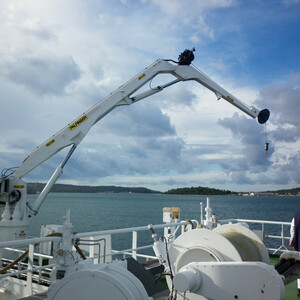

PKM 1150  16.0-20.0 7.3-5.2 1040-1160 1904 1490 11.8-12.5

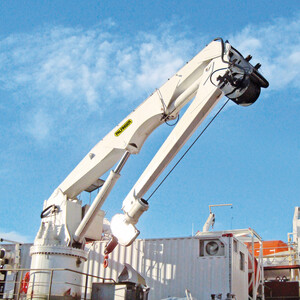

PKM 1450  16.0-20.0 9.0-6.4 1268-1440 2185 1770 14.8-15.6

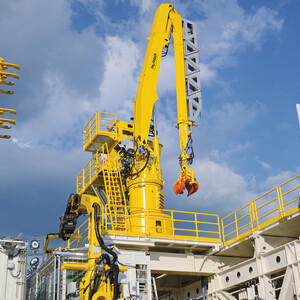

PKM 700 T  21.0 2.5 525 1245 1430 12.5
PKM 1300 T  25.0 4.5 1125 2840 1690 18.8

DKF Range
DKF 220 27.5 30 2200 4000 1800 25.0
DKF 300 30.0 30.0 3000 5000 2065 27.5
DKF 400 32.0 30.0 4000 6300 2050 30.0
DKF 500 35.0 35.0 5000 8000 2240 35.0
DKF 800 37.0 50.0 8000 11500 2271 55.0
DKF 1000* 40.0 60.0 10000 14400 2536 70.0
DKF 1200 43.0 80.0 12000 18000 2550 100.0
DKF 1600 45.0 100.0 16000 34000 3166 150.0
DKF 2000 50.0 125.0 20000 44000 3987 200.0
DKF 2500 50.0 150.0 25000 50000 4000 220.0
DKF 3000 50.0 200.0 30000 60000 4500 275.0

*Available only for deck cranes
