Travelling Cranes

Travelling Cranes

Range from 1 up to 600 t

If you choose a PALFINGER travelling crane, you choose maximum flexibility. After all, the travelling cranes are available in a wide range of designs, offering bespoke options and features for highly individual requirements. Available from simple engine book cranes to sophisticated BOP and X-mas tree handling cranes, they are high-quality and reliable solutions for the most varied environments.

Particularly compact in their design and available as electric or hydraulic versions, the travelling cranes of PALFINGER's marine business are constructed to meet the highest demands. Structures featuring overhead, underslung, gantry and semi-gantry cranes are available for various handling requirements.

Applications

MARINE

Travelling cranes are available in numerous configurations and for a range of marine applications from engine room cranes to advanced travelling deck cranes. The travelling feature indicates the mobility of the crane in the way it travels within a given area of operation. PALFINGER travelling cranes are delivered electric or hydraulic driven and with numerous different features and options depending on applications. All cranes are delivered custom-built according to project-specific requirements.

  • Monorail provision cranes

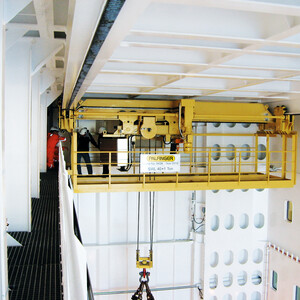

  • Engine room cranes
  • Cargo rail cranes

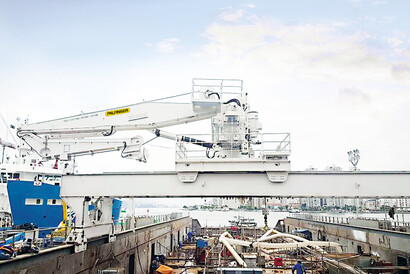

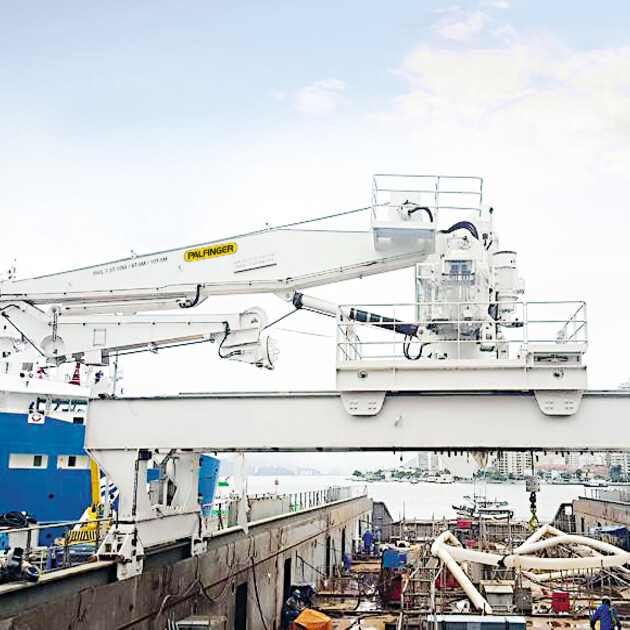

  • Travelling deck cranes
  • Thruster replacement cranes
  • Service cranes

OFFSHORE

PALFINGER travelling cranes offer many configurations and different applications for the offshore and oil and gas industry. Structures featuring overhead, underslung, gantry and semi-gantry cranes are available for various handling requirements. The cranes can be delivered with electric or hydraulic drives, depending on the application with numerous different features. All cranes are customized to project specific requirements.

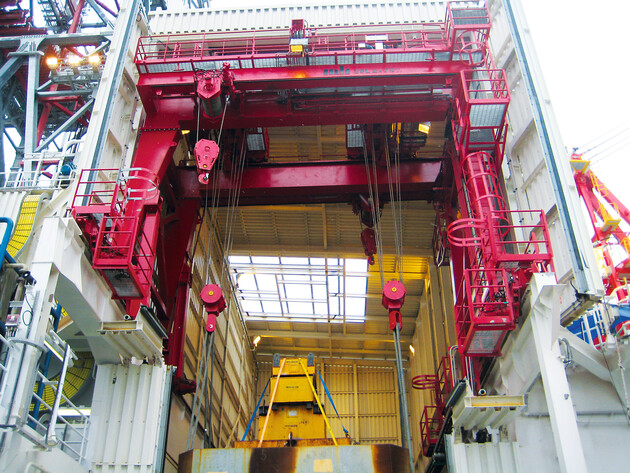

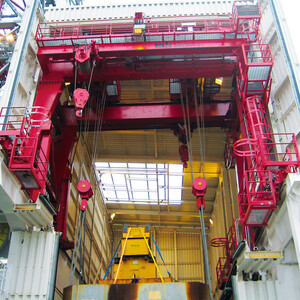

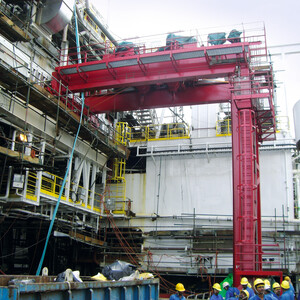

  • BOP handling cranes
  • X-mas tree handling cranes
  • Pipe handling cranes
  • Riser handling cranes
  • Service cranes

  • Hoisting capacity up to 600 metric tons
  • Long-life surface treatment: corrosion protection
  • Operation from control platform on crane
  • Electro hydraulic drive or fully electric
  • Low/high temperature operations

  • Remote control
  • External hydraulic power packs
  • Anti-collision system
  • ATEX Zone 1 and 2 execution

Range Category Lifting Capacity (t) Span (m) Dead Weight (t)

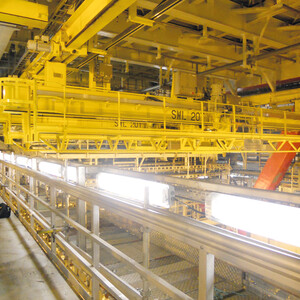

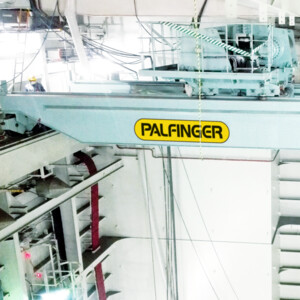

TKO Overhead traveling crane 1-600 5-50 5-200
TKU Underslung travelling crane 1-200 5-30 5-50

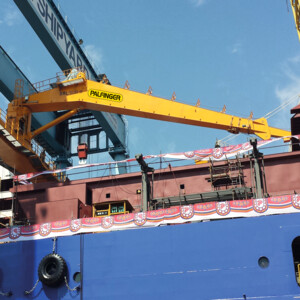

TKG Gantry travelling crane 1-600 5-50 10-600
TKSG Semi-gantry travelling crane 1-600 5-50 1-400
