Stiff Boom Cranes

Stiff Boom Cranes

Range from 150 up to 30000 kNm

Applications

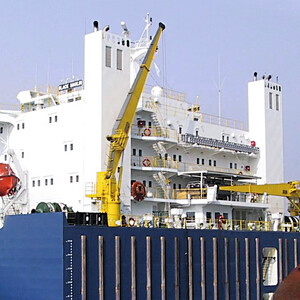

MARINE

PALFINGER stiff boom cranes for marine applications stand for their exceptional weight/power ratio. The slender design with additional features and options make the cranes attractive for operators on service vessels for lifting and handling cargo and containers. Stiff boom cranes are typically used in dock, on fixed installations, and in harbors.

  • Service cranes
  • Hose handling cranes
  • Container and cargo handling cranes

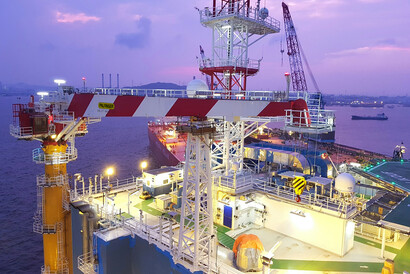

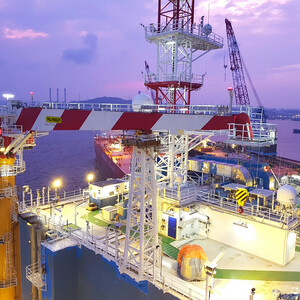

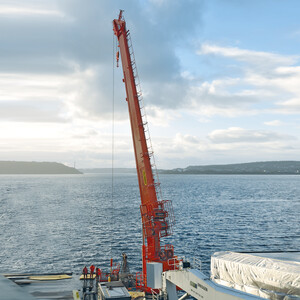

OFFSHORE

Stiff boom cranes for offshore applications are available in the range up to 30000 kNm lifting moment and can be supplied according to customer requirements. The stiff boom cranes of PALFINGER's marine business can be delivered within a broad range of certifications, numerous optional features, and are typically used as Shipboard cranes or Ship to Ship cranes. At oil rigs or offshore vessels the cranes are lifting and handling hoses or provision.

  • Shipboard cranes
  • Ship to Ship cranes
  • Hose handling cranes
  • Provision cranes

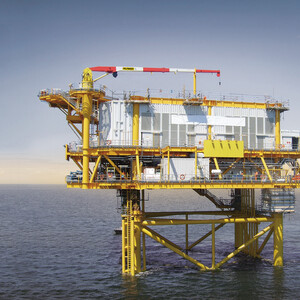

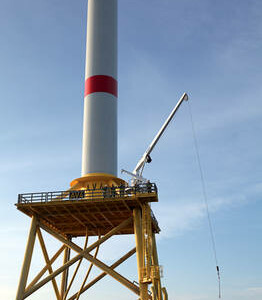

WIND

Stiff boom cranes for the wind industry ensure safe and fast unloading of supply vessels and flexible material handling on the TP. Mainly in use at platforms or substations, the cranes are customised to accommodate any sea state (SWH). Optional features for extra functionality and safe operation make the PALFINGER stiff boom cranes the best choice for material handling, servicing, and handling of various equipment. Stiff boom cranes for the wind industry are designed according to customer requirements.

  • Platform cranes
  • Substation cranes

  • ​​Hoisting capacity up to 100 metric tons
  • Jib radius up to 50 meters
  • Long-life surface treatment: corrosion protection
  • Operation from control platform on crane
  • Integrated electro hydraulic drive / HPU
  • Continuous slewing
  • Low / high temperature operations
  • Anti-collision system

  • Remote control / operator’s cabin
  • Overload protection systems: MOPS & AOPS
  • Constant tensioning
  • Lifting of personnel – man-riding
  • External hydraulic power packs
  • Spray metalizing
  • Different painting systems
  • Crane certification according to selected rules and regulations
  • Active Heave Compensation (AHC)
  • ATEX Zone 1 and 2 execution
  • Tugger winches



Crane Type Outreach (m) Lifting Capacity (t) Lifting Moment (kNm) Total Moment (kNm) Pedestal Diameter (mm) Dead Weight (t)
PSM Range
PSM 200  6-16 3.5-0.9 144-210 270 885 2.7-3.2

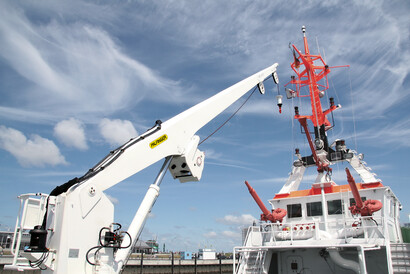

PSM 400  6-16 5.6-1.7 288-336 424 885 3.2-3.7
PSM 600  6-20 10-2.3 460-600 737 1095 4.4-5.5
PSM 900  6-20 14.2-3.2 640-852 1039 1325 5.9-7.0
PSM 1200  6-24 19-3.5 840-1140 1409 1490 7.8-10.2
PSM 1500  7-24 20.3-4.6 1104-1421 1765 1490 9.2-11.3
PSM 1800  7-24 25.6-5.4 1296-1792 2202 1770 11.4-14.1
PSM 3000  21 12.5 2625 3750 1775 24.8

DK Range
DK220  27.5 20 2200 4000 1800 15.0
DK300  30.0 25.0 3000 5000 2065 17.5
DK400  32.0 30.0 4000 6300 2050 20.0
DK500  35.0 35.0 5000 8000 2240 25.0
DK800  40.0 50.0 8000 11500 2271 45.0
DK1000*  43.0 60.0 10000 14400 2536 60.0
DK1200  45.0 80.0 12000 18000 2550 85.0
DK1600  50.0 100.0 16000 34000 3166 120.0
DK2000  50.0 125.0 20000 44000 3987 160.0
DK2500  50.0 150.0 25000 50000 4000 180.0
DK3000  55.0 200.0 30000 60000 4500 220.0

PSW Range
PSW 36000 6-15 2t @SWH 2 m 340-390 550 885 4-4.5
PSW 36000 6-15

3t @ SWH 0.75 m

340-390 550 885 4-45

*Available only for deck cranes
